EVQ-PF004R

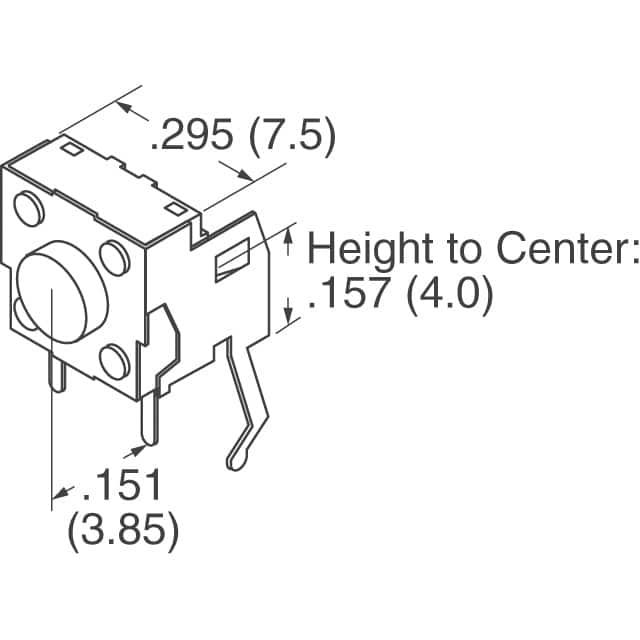

EVQ-PF 系列 7.5 x 7.1 mm 通孔 1 N 直角 轻触开关

侧面触动 触摸 SPST-NO 通孔，直角

得捷:
SWITCH TACTILE SPST-NO 0.02A 15V

艾睿:
This light touch EVQ-PF004R tactile switch from Panasonic is perfect for turning on your circuit by applying pressure. This device has a maximum current rating of 0.02 A @ 15VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The EVQ-PF004R tactile switch has a PC pin termination style. This product is 7.5 mm long, 7.1 mm tall and 7.85 mm deep. This round button actuator is red. The maximum DC voltage rating is 15 VDC.

Verical:
Switch Tactile N.O. SPST Round Button PC Pins 0.02A 15VDC 1N Thru-Hole Bulk

MASTER:
Switch Tactile N.O. SPST Round Button PC Pins 0.02A 15VDC 1N Thru-Hole Bulk

Online Components:
Switch Tactile N.O. SPST Round Button PC Pins 0.02A 15VDC 1N Thru-Hole Bulk

Electro Sonic:
Switch Tactile N.O. SPST Round Button PC Pins 0.02A 15VDC 1N Thru-Hole Bulk
