EVQ-5PN04K

PANASONIC ELECTRONIC COMPONENTS  EVQ-5PN04K  轻触开关, SPST-常开, 50mA, 12VDC, SMD, 整卷

顶部触动 触摸 SPST-NO 表面贴装型

得捷:
SWITCH TACTILE SPST-NO 0.05A 12V

e络盟:
SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD

艾睿:

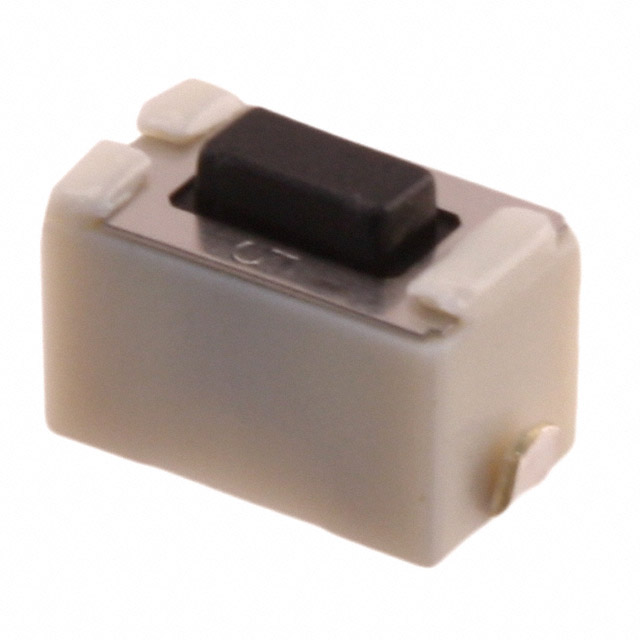

Turn on or off your circuit simply by applying pressure to this light touch EVQ-5PN04K tactile switch from Panasonic. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 12VDC. This tactile switch has an operating temperature range of -30 °C to 85 °C. The EVQ-5PN04K tactile switch has a j-bend termination style. This black rectangular button actuator is 0.8 mm long. This product is 7.2 mm long, 4.3 mm tall and 3.5 mm deep. The maximum DC voltage rating is 12 VDC.

Chip1Stop:
Switch Tactile N.O. SPST Rectangular Button J-Bend 0.05A 12VDC 2.4N SMD Embossed Tape

Verical:
Switch Tactile N.O. SPST Rectangular Button J-Bend 0.05A 12VDC 2.4N SMD Embossed Tape

MASTER:
Switch Tactile N.O. SPST Rectangular Button J-Bend 0.05A 12VDC 2.4N SMD T/R

Electro Sonic:
Switch Tactile N.O. SPST Rectangular Button J-Bend 0.05A 12VDC 2.4N SMD T/R
