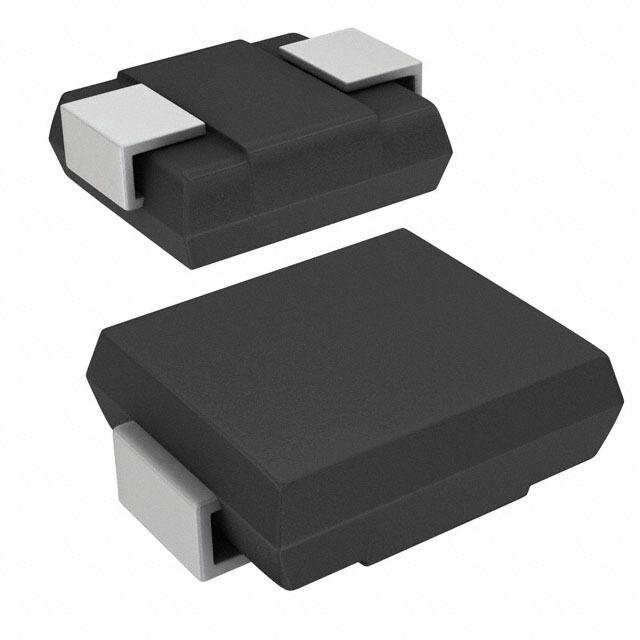

ERZ-VF2M330

Var 20VAC/26VDC 125A 33V SMD T/R

33 V 125 A 变阻器 1 电路 表面贴装，MLCV 2-SMD，J 形引线

得捷:
VARISTOR 33V 125A 2SMD JLEAD

立创商城:
ERZ-VF2M330

艾睿:
A nonlinear resistor this ERZ-VF2M330 MOV manufactured from Panasonic will change resistance. This device&s;s clamping current is 2.5 A and clamping voltage is 65 V. Its maximum surge current is 125 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 26 VDC. This product is 8 mm long, 3.2 mm tall and 6 mm deep. This varistor has a voltage of 33 V.

Verical:
Var 20VAC/26VDC 125A 33V SMD T/R

MASTER:
Var 20VAC/26VDC 125A 33V SMD T/R

Online Components:
Var 20VAC/26VDC 125A 33V SMD T/R

Electro Sonic:
Var 20VAC/26VDC 125A 33V SMD T/R
