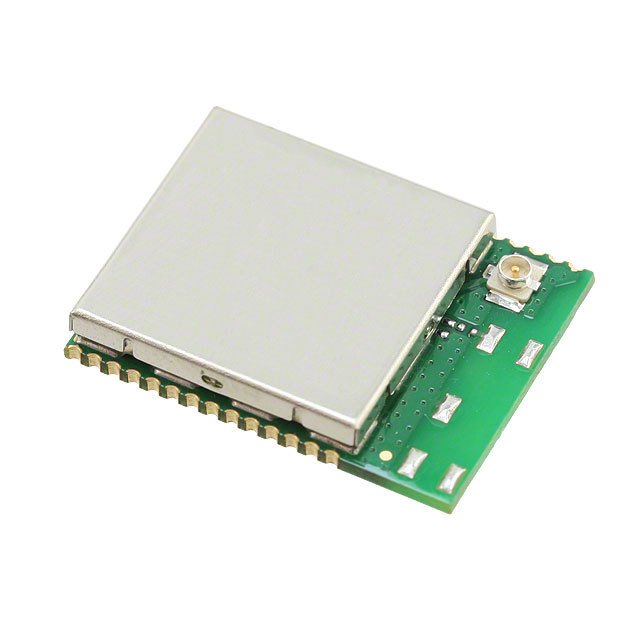

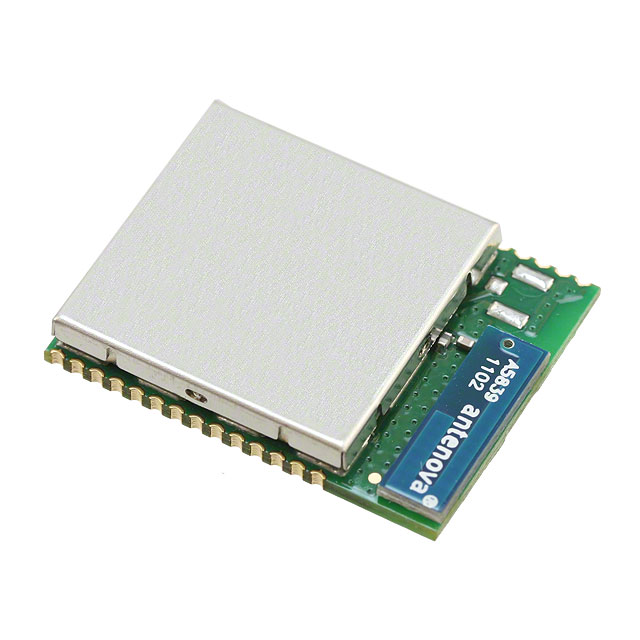

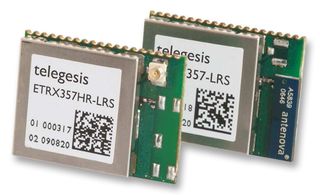

ZigBee Pro SOC 2480MHz 250Kbps 33Pin SMD Module
module is a low power 2.4GHz ZigBee module, long range version with a link budget of up to 124dB based on the latest Ember EM357 single chip ZigBee / IEEE802.15.4 solution. It is designed to be integrated into any device without the need for RF experience and expertise. The module"s unique AT-style command line interface allows designers to quickly integrate ZigBee technology without complex software engineering. For custom application development the ETRX357HR-LRS series integrates with ease into Embers insight development environment.
频率 2.4 GHz
通道数 15
RAM大小 12 KB
FLASH内存容量 192 KB
输出功率 20 dBm
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.1V ~ 3.6V
安装方式 Surface Mount
引脚数 33
封装 SMD
封装 SMD
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Wireless, Security, Building Automation, Lighting, System Monitoring, Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ETRX357HR-LRS Silicon Labs 芯科 | 当前型号 | 当前型号 |
ETRX357-LRS 芯科 | 类似代替 | ETRX357HR-LRS和ETRX357-LRS的区别 |
ETRX357HR-LR 芯科 | 功能相似 | ETRX357HR-LRS和ETRX357HR-LR的区别 |
RC1181HP-TM
| 功能相似 | ETRX357HR-LRS和RC1181HP-TM的区别 |
