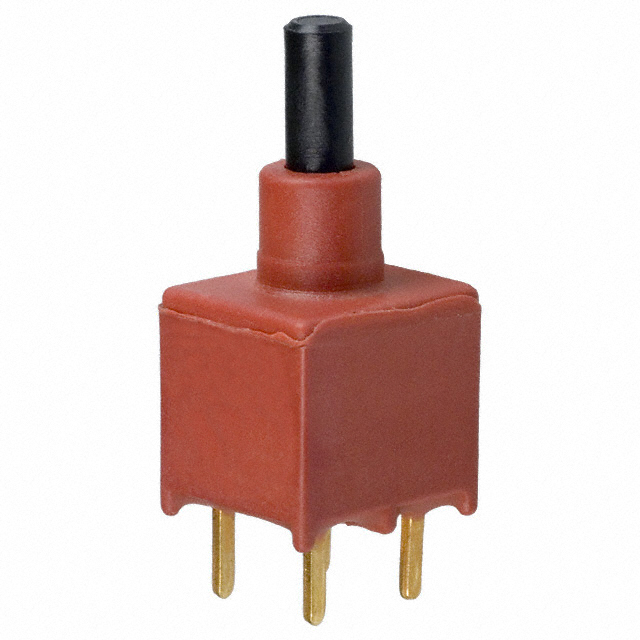

C & K COMPONENTS EP21SD1CBE 按钮开关, DPST, 关-开, 20 V, 20 V, 通孔
按钮 DPST-NO 标准 通孔
得捷:
SWITCH PUSH DPST-NO 0.4VA 20V
立创商城:
EP21SD1CBE
e络盟:
按钮开关, 标准, EP系列, DPST, 关-开, 柱塞
艾睿:
Switch Push Button OFF Mom DPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Allied Electronics:
Switch Push Button OFF Mom DPST Round Plunger 20VA
安富利:
Switch Push Button OFF Mom DPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Chip1Stop:
Switch Push Button OFF Mom DPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button OFF Mom DPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Tray
Newark:
# C & K COMPONENTS EP21SD1CBE Pushbutton Switch,STRAIGHT,DPST,OFF-ON,PC TAIL Terminal,PCB Hole Count:4
MASTER:
Sealed Tiny Pushbutton Switches
Electro Sonic:
Sealed Tiny Pushbutton Switches
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
排数 2
触点类型 DPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 18.85 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 通信与网络, 传感与仪器, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EP21SD1CBE C&K Components | 当前型号 | 当前型号 |
MC8AD9P1A2M2RES Multicomp | 类似代替 | EP21SD1CBE和MC8AD9P1A2M2RES的区别 |
