Switch Push Button OFF Mom DPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole

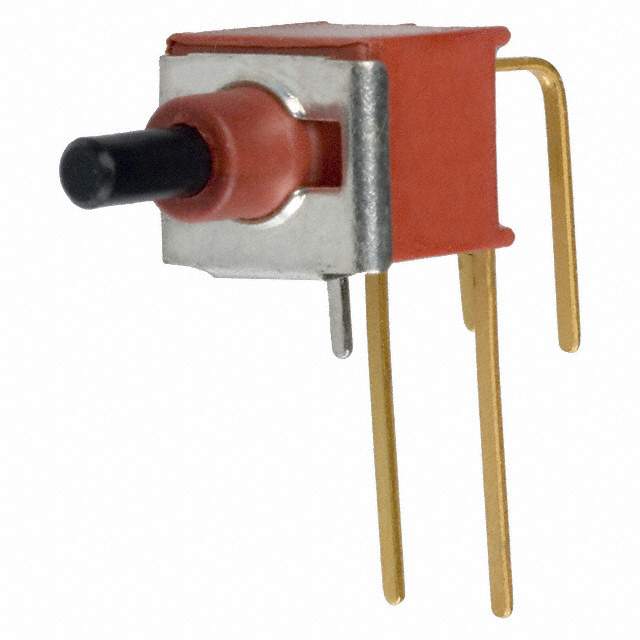

This classic push button switch from C&K Components will do exactly what you need it to do by turning your circuit on and off. It has a DPST configuration. This push switch has an operating temperature range of -30 °C to 85 °C. The EP21SD1AVBE push switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 10.11 mm long, 8.77 mm tall and 24.565 mm deep.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
排数 2
触点类型 DPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 10.11 mm
高度 8.77 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 60000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EP21SD1AVBE C&K Components | 当前型号 | 当前型号 |
EP21SD1ABE C&K Components | 完全替代 | EP21SD1AVBE和EP21SD1ABE的区别 |
TP43W003050 Apem Components | 类似代替 | EP21SD1AVBE和TP43W003050的区别 |
TP42W003050 Apem Components | 类似代替 | EP21SD1AVBE和TP42W003050的区别 |
