PANASONIC ELECTRONIC COMPONENTS EVQ-21507K 轻触开关, SPST-常开, 20mA, 15VDC

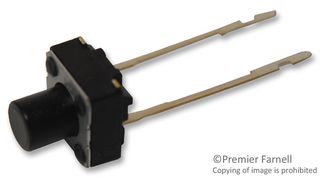

Wow! This light touch tactile switch from is easy for turning on your circuit with applied force. This device has a maximum current rating of 0.02 A @ 15VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The EVQ-21507K tactile switch has a PC pin termination style. The maximum DC voltage rating is 15 VDC. This product is 6 mm long, 7 mm tall and 6.3 mm deep. This black round button actuator is 3.6 mm long.
额定电压DC 15 V
接触器类型 Standard
排数 1
方向 Vertical
触点类型 SPST-NO
触点额定电流 20.0 mA
额定电流Max 0.02A @15VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 Radial
长度 6 mm
宽度 6 mm
高度 7 mm
封装 Radial
工作温度 -20℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EVQ-21507K Panasonic 松下 | 当前型号 | 当前型号 |
B3M-6009 欧姆龙 | 功能相似 | EVQ-21507K和B3M-6009的区别 |
B3F6050 欧姆龙 | 功能相似 | EVQ-21507K和B3F6050的区别 |
B3F6052 欧姆龙 | 功能相似 | EVQ-21507K和B3F6052的区别 |
