LM3S6965以太网评估板,带128*64OLED,SD,USB,LED,KEIL支持

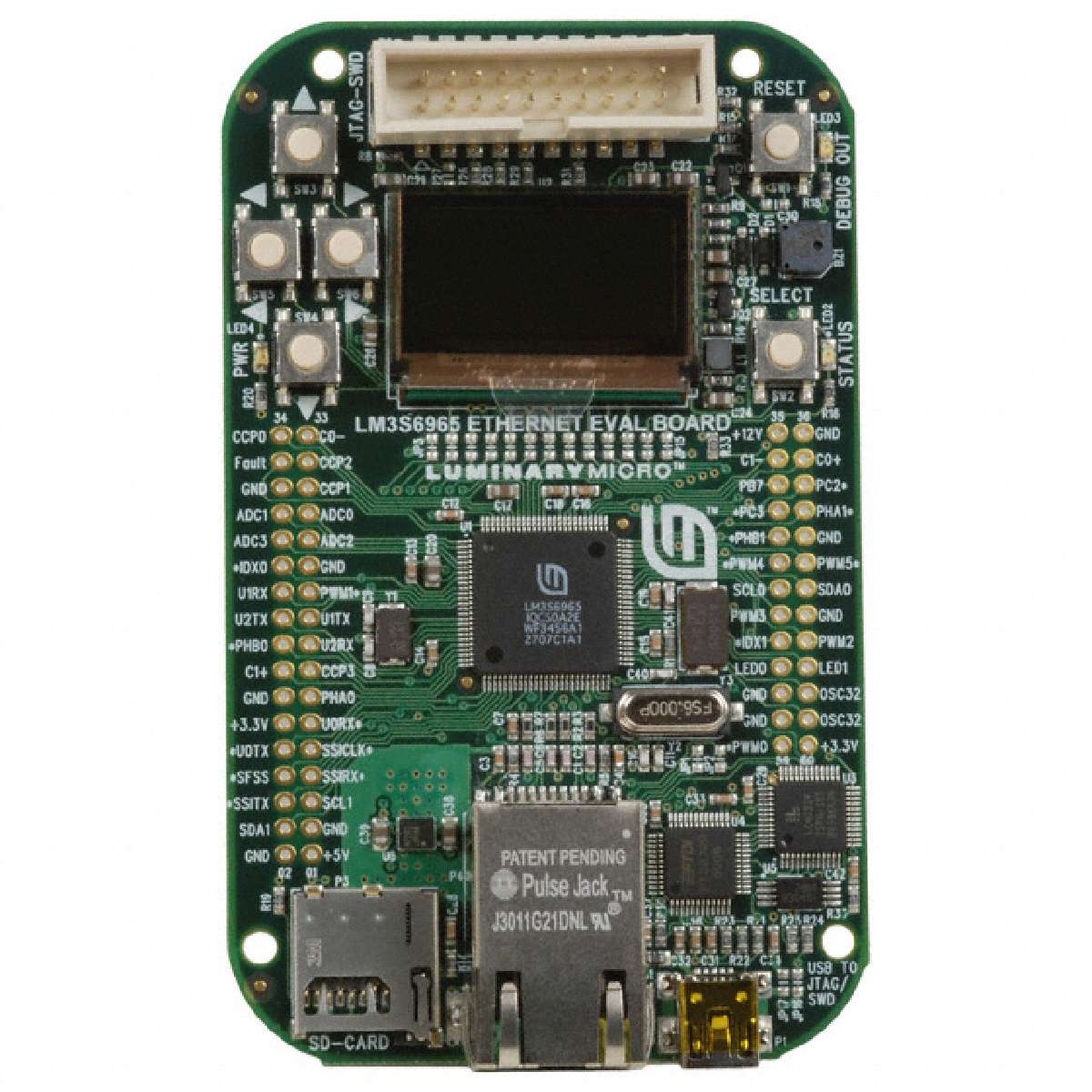

The is a Stellaris LM3S6965 Ethernet evaluation kit with Keil RealView MDK-ARM, which is a compact and versatile evaluation platform for Ethernet enabled Stellaris ARM Cortex-M3 based microcontrollers. The evaluation kit uses the LM3S6965 microcontroller"s fully integrated 10/100 Ethernet controller to demonstrate an embedded web server. The board can be used an either evaluation platform or as a low cost in circuit debug interface ICDI. In debug interface mode, the on board microcontroller is bypassed, allowing programming or debugging of an external target. The kit is also compatible with high performance external JTAG debuggers. This evaluation kit enables quick evaluation, prototype development, and creation of application specific designs for Ethernet networks.
- .
- LM3S6965 CAN evaluation board with Keil RealView MDK-ARM
- .
- Stellaris LM3S6965 microcontroller with fully integrated 10/100 MAC+PHY Ethernet controller
- .
- Simple setup, USB cable provides serial communication, debugging and power
- .
- OLED graphics display with 128 x 64 pixel resolution and 16 shades of monochromatic colour
- .
- User LED, navigation switches and select pushbuttons
- .
- All LM3S6965 I/O available on labelled break out pads
- .
- Magnetic speaker
- .
- Standard ARM 20 pin JTAG debug connector with input and output modes
- .
- MicroSD card slot
- .
- Retracting Ethernet cable, USB cable and JTAG cable
