EZ80F917050SBCG

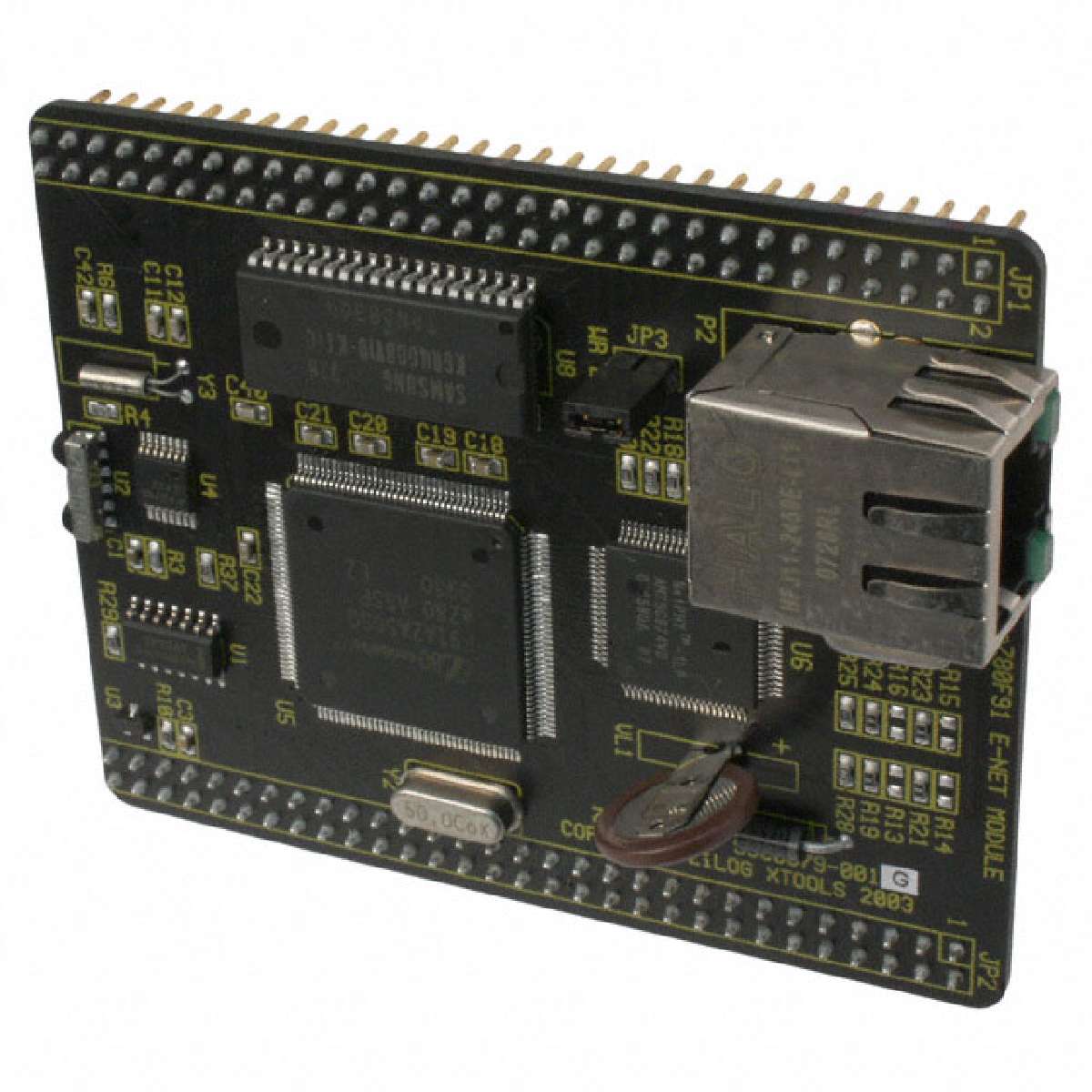

ZdotsSBC for eZ80 cclaimPlus! eZ80 91 Series

is a Zdots single board computer for eZ80AcclaimPlus connectivity application specific standard product. It is a compact, high performance ethernet SBC specially designed for the rapid development and deployment of embedded systems requiring control and internet/intranet connectivity. This expandable module is powered by power efficient, high speed, optimized pipeline architecture eZ80F91 connectivity ASSP, a member of eZ80AcclaimPlus family. eZ80F91 is a high speed single cycle instruction fetch microcontroller, which operates with a clock speed of 50MHz.

.

10/100 base-T ethernet PHY with RJ45 connector

.

512KB fast SRAM, 25 KB on chip flash memory, 1MB off chip NOR flash memory

.

Battery backed Real Time Clock

.

Input/Output connector which provides 32 general purpose 5V tolerant I/O pin outs

.

IrDA transceiver ZHX1810

.

Onboard connector provides I/O bus for external peripheral connections

.

Low cost connection to carrier board via two 2 x 30 pin headers

.

Single cycle instruction fetch, high performance, pipelined eZ80 CPU core

.

Two UARTs with independent baud rate generators and support for 9bit operation

.

SPI and I2C with independent clock generator, JTAG and ZDI debug interfaces

Do not use in life support.
