Ethernet Can Evaluation Kit For Keil Real View MDKARM
The is a Stellaris LM3S8962 Ethernet+CAN evaluation kit with Keil RealView MDK-ARM, which provides a compact and versatile evaluation platform for Ethernet + CAN enabled Stellaris ARM Cortex-M3 based microcontrollers. The evaluation kit design highlights the LM3S8962 microcontroller"s integrated CAN and 10/100 Ethernet controllers. The kit functions as a complete controller area network CAN by providing two boards each with a Stellaris microcontroller. The main evaluation board is the CAN host. A small CAN device board, linked with a ribbon cable, uses a Stellaris LM3S2110 microcontroller. The function of each board is fully configurable in software. Each board has an in circuit debug interface ICDI that provides hardware debugging functionality not only for the on board Stellaris devices, but also for any Stellaris microcontroller based target board.
- .

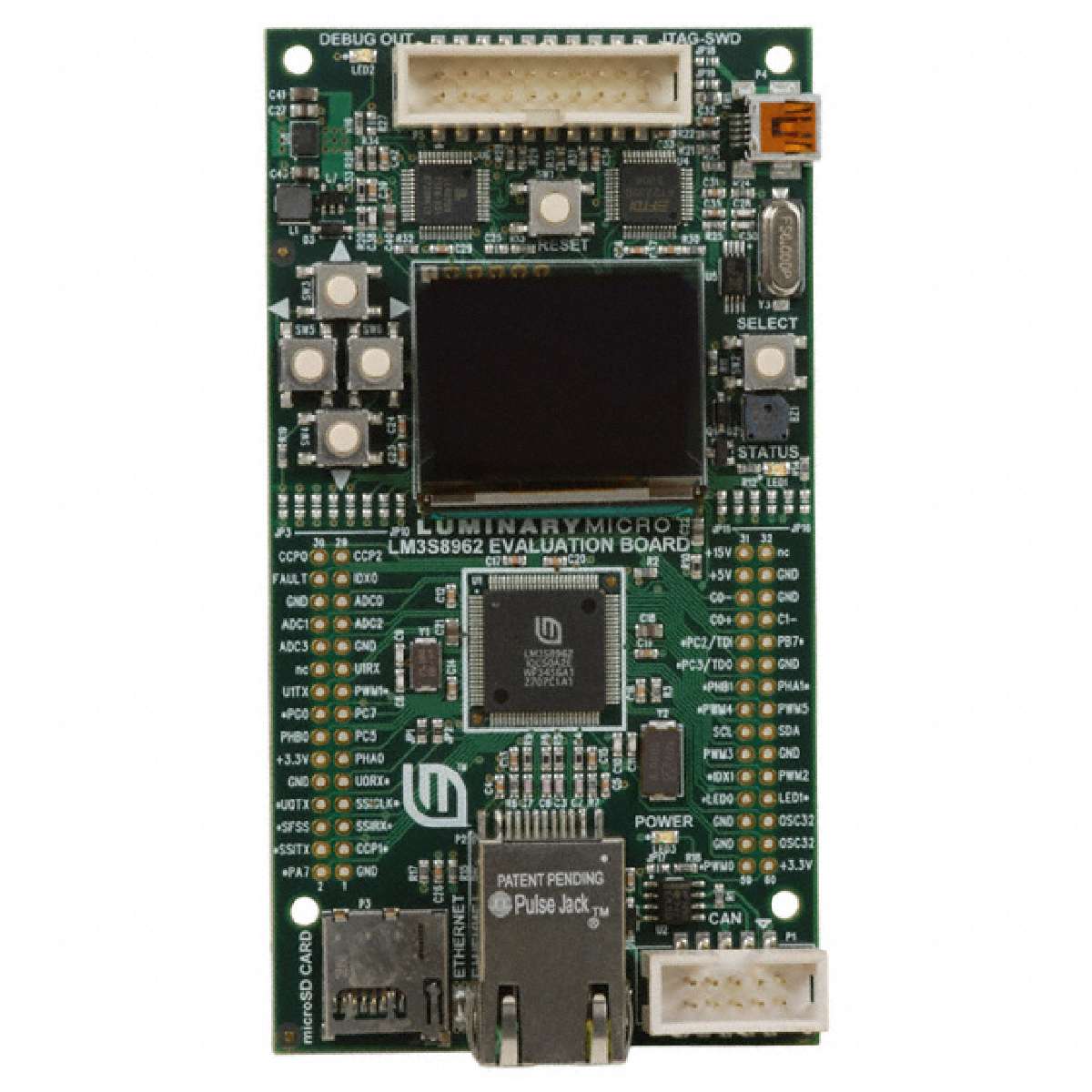

- LM3S8962 evaluation board with Keil RealView MDK-ARM
- .
- Stellaris LM3S8962 MCU with fully integrated 10/100 embedded Ethernet controller
- .
- OLED graphics display with 128 x 96 pixel resolution
- .
- User LED, navigation switches and select pushbuttons
- .
- Magnetic speaker
- .
- LM3S8962 I/O available on labelled break out pads
- .
- Standard ARM 20 pin JTAG debug connector with input and output modes
- .
- Standalone CAN device board using Stellaris LM3S2110 microcontroller
- .
- Ethernet cable, CAN ribbon cable, USB and JTAG cables
- .
- Quickstart sample application runs with or without Ethernet
