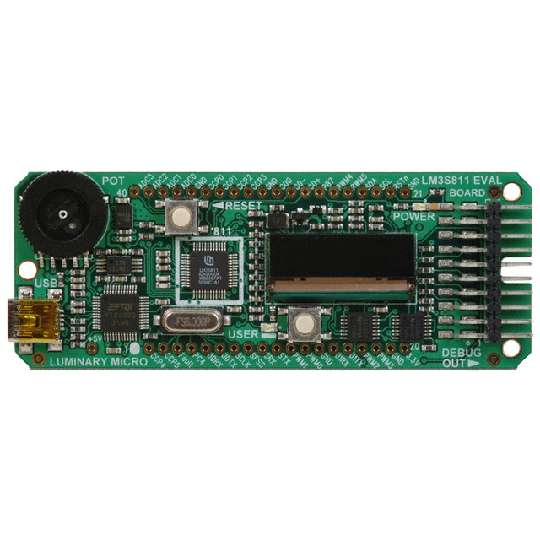

LM3S811 Microcontroller Evaluation Kit 50MHz CPU
The is a Stellaris LM3S811 evaluation kit with IAR Embedded Workbench development tools which is a compact and versatile evaluation platform for the Stellaris LM3S811 ARM Cortex-M3 based microcontroller and an in circuit debug interface ICDI for any Stellaris microcontroller based target board. The evaluation board allows users to evaluate, prototype and create application specific designs. The Stellaris LM3S811 evaluation board is configured for immediate use. To power the evaluation board, use the USB cable supplied in the kit. Connect the mini-b smaller end of the USB cable to the connector labelled USB on the evaluation board. Connect the other end Type A to a free USB port on your host PC. The USB interface is capable of sourcing up to 500 mA for each attached device, which is sufficient for the evaluation board. If connecting the board through a USB hub, it must be a powered hub.
- .
- Stellaris LM3S811 microcontroller
- .
- OLED graphics display with 96 x 16 pixel resolution
- .
- Use programmable pushbutton and LED
- .
- Reset pushbutton and power indicator LED
- .
- Thumbwheel potentiometer for driving an analog to digital converter ADC input
- .
- Standard ARM 20 pin JTAG debug connector for use as an in circuit debug interface
- .
- I/O signal break out pads for hardware prototyping
- .
- UART0 accessible through a USB Virtual COM Port VCP
- .
- USB interface for all communication and power
- .
- Evaluation copy of the Keil RealView microcontroller development kit software tools
