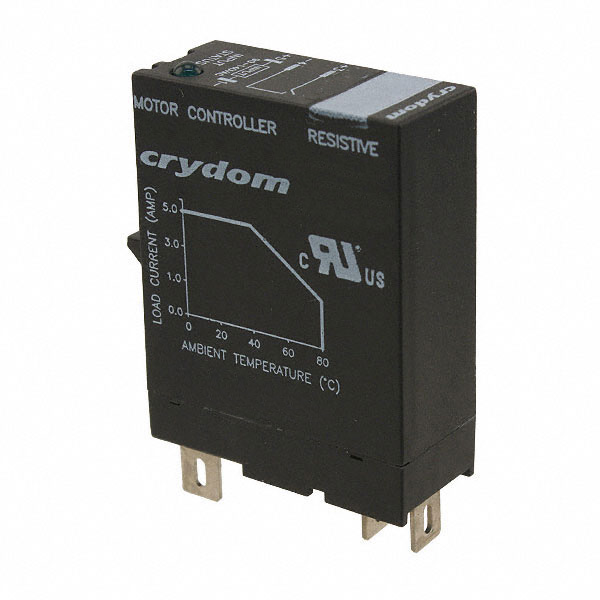

Plug In, DIN / PCB Mount - ED Series
The zero voltage switching ED series from offers a AC output solid state relay series in an industry standard EMR plug in package. This enables the device to be both mounted onto a PCB via RS stock number 740-1365 or a standard DIN rail via RS stock number 740-1368.
AC output solid state relay in an industry standard EMR plug in package
Ratings of 3 and 5 Amps
Load voltage range of 24 → 280 Vac
Fits standard DIN rail and PCB mountable sockets
LED input status indicator
AC or DC control voltage
cUL recognised, IEC rated, CE & RoHS compliant
Horsepower rated
### 认可
cUL, IEC, CE, CCC & RoHS Compliant
额定电流 3 A
输出电压 24V ~ 280V
输出电流 3000 mA
负载电流 3 A
输入电流 6.9 mA
隔离电压 3750 v
输出电压Max 280 V
输出电流Max 3 A
负载电流Max 3 A
负载电流Min 0.15 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
额定电压 24VAC ~ 280VAC
工作电压Min 24 VAC
工作电压Max 280 VAC
输入电压 32 V
安装方式 Quick Connect, Plug In
引脚数 4
封装 Module
长度 29 mm
高度 37.4 mm
封装 Module
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536490080
