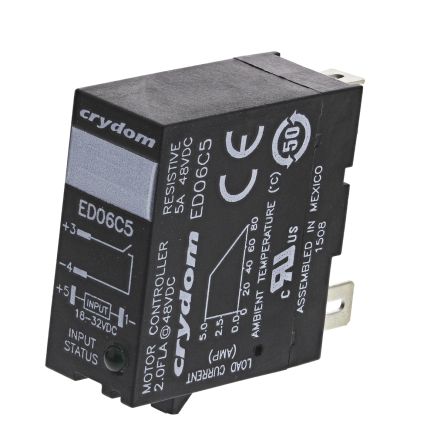

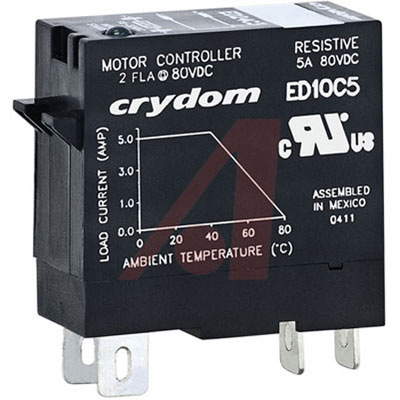

Plug In, DIN / PCB Mount - ED Series
The DC switching ED series from offers a DC output solid state relay series in an industry standard
EMR plug in package. This enables the device to be both mounted onto a PCB via RS stock number 740-1365 or a standard DIN rail via RS stock number 740-1368.
DC output solid state relay in an industry standard EMR plug in package
Ratings of 5 Amps
Load voltage range of 1 → 48 and 1 → 80 Vdc
Fits standard DIN rail & PCB mountable sockets
LED input status indicator
AC or DC control voltage available
cUL recognised, IEC rated, CE & RoHS compliant
Motor controller rated
### 认可
cUL, IEC, CE, CCC & RoHS compliant
工作电压 48.0V max
额定电流 5 A
输出电流 5000 mA
负载电流 5 A
输入电流 19.7 mA
隔离电压 2500 v
输出电压Max 48 V
输出电流Max 5 A
负载电流Max 5 A
负载电流Min 0.1 A
工作温度Max 80 ℃
工作温度Min -30 ℃
额定电压 1VDC ~ 48VDC
工作电压Min 1 VDC
工作电压Max 48 VDC
输入电压 32 V
安装方式 DIN Rail
引脚数 4
封装 Module
长度 29 mm
高度 37.4 mm
封装 Module
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410060
