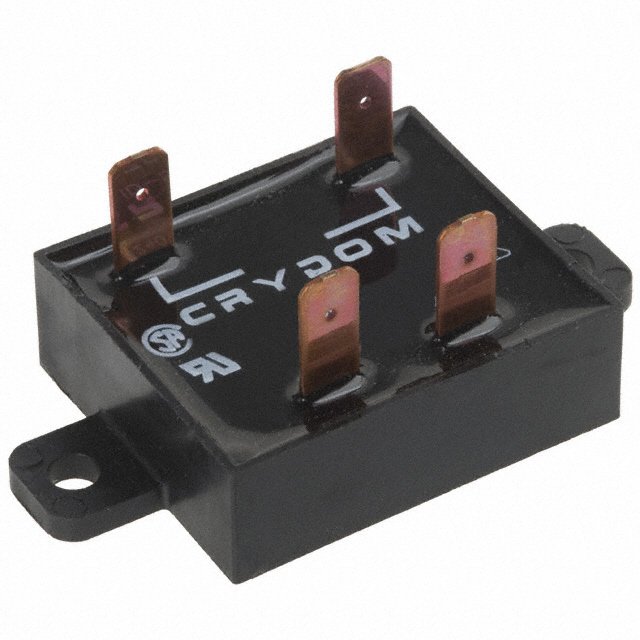

EZE240A12

Relay SSR 10mA 36V AC-IN 12A 280V AC-OUT 4Pin

Solid State Relays, 150 Apeak Max. Surge Current, 600 Vpeak Transient Overvoltage

** 10-125 Amp; 120/240, 480 VAC; AC Output**

The Series EZ SPST-NO AC output relays offer a low profile package with convenient quick-connect terminals and is the preferred choice for replacement of 120 V and 240 V electromechanical relays.

.

* Operating Temperature Range:** –30°C to 80°C. ** Isolation Voltage V RMS :** 4000 240 V, DC Control. ** Options Available on Special Order:** Internal snubber and random turn-on switching.

** Features**

* AC or DC Control, SCR AC Output

* Low Leakage

* UL, CSA, VDE Approved
