E-TDA7342N

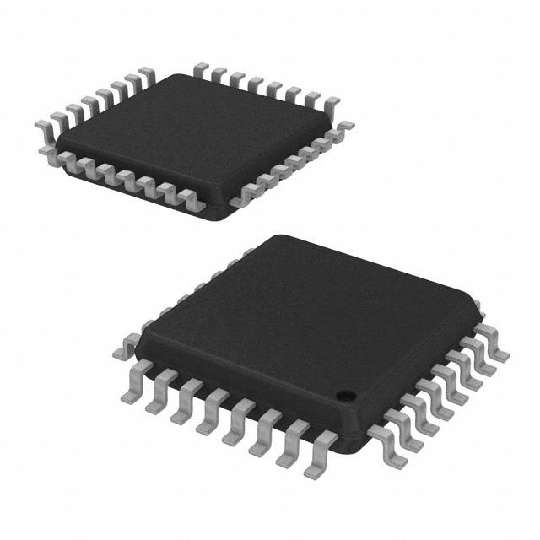

Audio Processor 32Pin TQFP

The audioprocessor TDA7342 is an upgrade of the TDA731X audioprocessor family.

Due to a highly linear signal processing, using CMOS-switching techniques instead of standard bipolar multipliers, very low distortion and very low noise are obtained. Several new features like softmute, and zero-crossing mute are implemented. The soft Mute function can be activated in two ways:Via serial bus Mute byte, bit D0Directly on pin 21 through an I/O line of the microcontroller

Very low DC stepping is obtained by use of a BICMOS technology.

**Key Features**

.

All functions programmable via serial I2 C bus

.

Four speaker attenuatorsFour independent speakers control in 1.25dB steps for balance and fader facilitiesIndependent mute function

.

Input multiplexerTwo stereo and one mono inputsOne quasi differential inputSelectable input gain for optimal adaptation to different sources

.

Volume control in 0.3dB steps including gain up to 20dB

.

Fully programmable loudness function

.

Bass and treble control

.

Zero crossing mute, soft mute and direct mute
