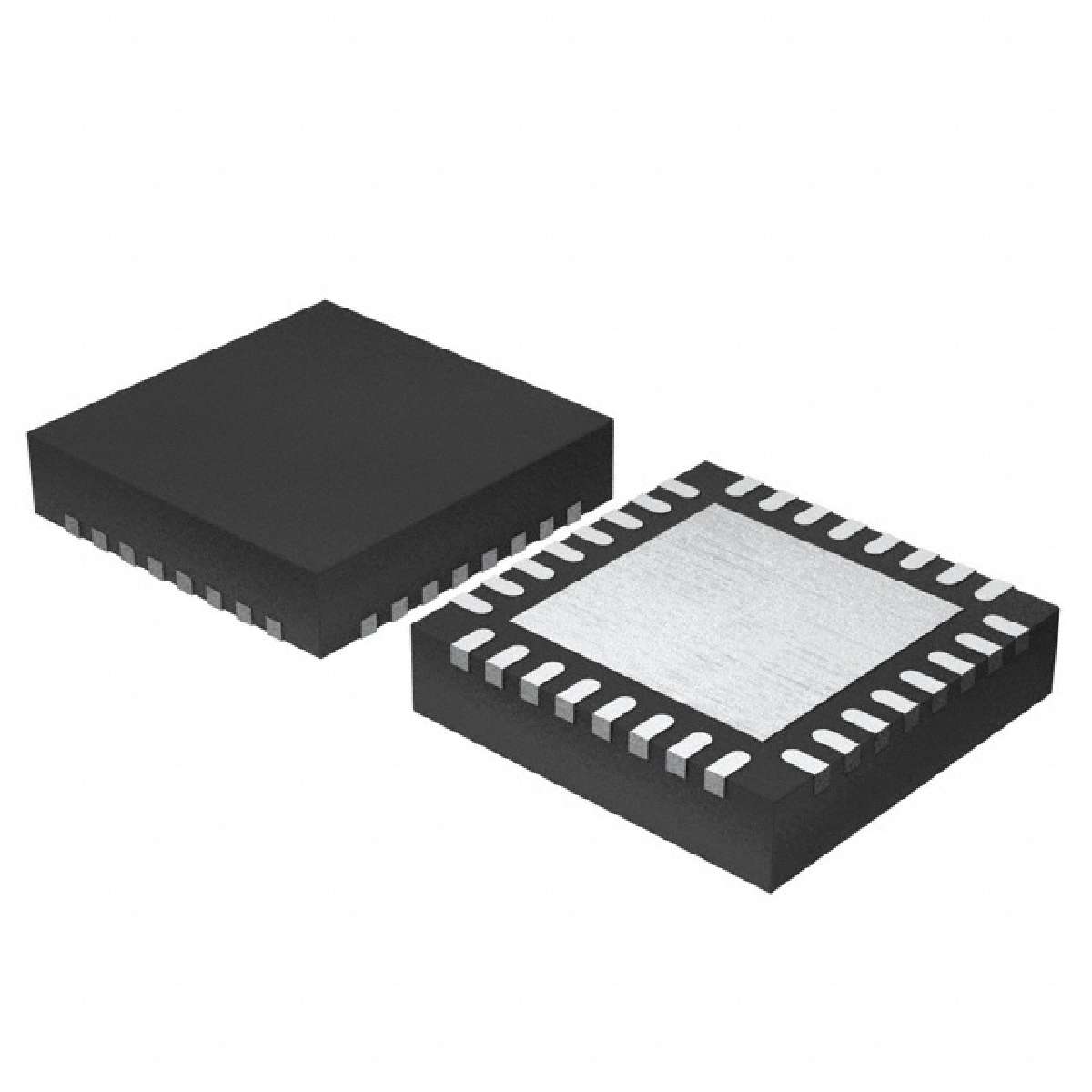

EFM32TG210F32-QFN32

MCU 32Bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 32Pin QFN EP T/R

The is an ARM Cortex-M3 based 32-bit Microcontroller with speeds up to 32MHz and is part of the Tiny Gecko family of energy friendly devices. Built on top of a low-power platform that includes innovative low energy techniques, fast wake-up times and energy saving modes the device is ideal for energy sensitive applications. In addition, this device includes 32kB flash, 4kB RAM, 24 digital I/Os, 2 x 16-bit timers and multiple communication interfaces.

.

High performance 32-bit processor at up to 32MHz

.

Wake-up interrupt controller

.

Flexible energy management system

.

8-channel DMA controller

.

8-channel Peripheral reflex system PRS for autonomous inter-peripheral signalling

.

Hardware AES with 128/256-bit keys in 54/75 cycles

.

16-bit Low energy timer

.

24-bit Real-time counter

.

16-bit Pulse counter

.

Watchdog timer with dedicated RC oscillator at 50nA

.

2 x Universal synchronous/asynchronous receiver/transmitter

.

UART/SPI/SmartCard ISO 7816/IrDA/I²S

.

Triple buffered full/half-duplex operation

.

Low energy UART

.

I²C Interface with SMBus support

.

Ultralow power precision analog peripherals

.

Low energy sensor interface LESENSE

.

Ultra efficient power-on reset and brown-out detector

.

2-pin Serial wire debug interface

.

1-pin Serial wire viewer
