ATMEL EVK1040A 评估套件板, QTOUCH, AT42QT1040

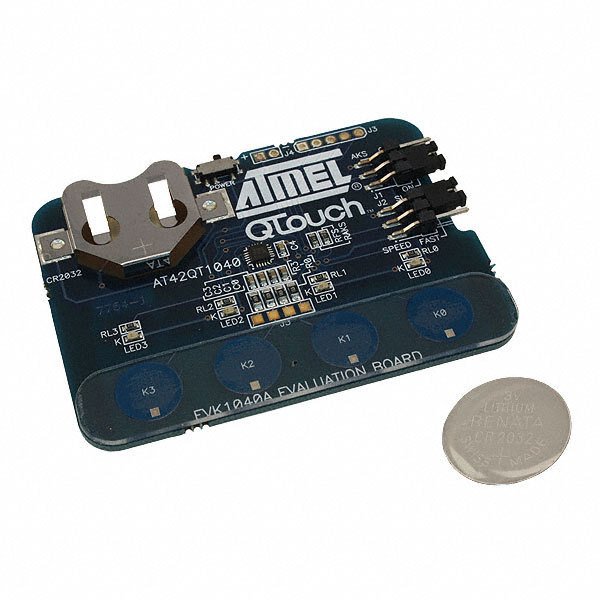

The is an evaluation and development kit for applications using the AT42QT1040-MMU. The EVK1040A evaluates all functions of the Atmel AT42QT1040 touch sensor controller. The AT42QT1040 QT1040 IC is a convenient and easy to use touch sensor controller for up to four capacitive touch keys. The kit provides a convenient reference design and lets designers visualize discrete touch buttons and LED"s for per-channel touch indication. Movable jumpers on the board allow designers to test adjacent key suppression AKS functionality and speed settings. The EVK1040A is battery powered and works as a standalone system. on board connections can be used to access debug data from the chip. This kit is for the evaluation and development of applications using the AT42QT1040-MMH "QT1040" 4 channel QTouch integrated circuit IC. The EVK1040A is configured with 4 capacitive keys behind a 1mm acrylic front panel, where a touch is shown by an LED for each key touched.
- .
- Visualize discrete touch buttons and LED"s per channel touch indication
- .
- Battery powered and standalone
- .
- 4 channel touch sensor IC and 4 outputs for per channel touch indication
- .
- On board connections for debugging
- .
- Ultra low power consumption of 31mA, 64ms between acquisitions at 1.8V
- .
- Option to configure output as proximity sensor
- .
- 2 response speed settings
