ATMEL EVK2160A 评估套件板, QTOUCH, AT42QT2160

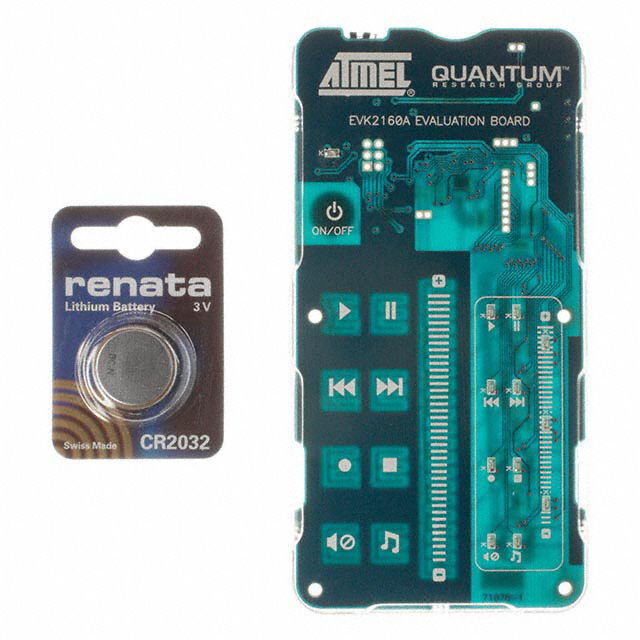

The is an evaluation and development for applications using the AT42QT2160-MMU "QT2160" 16 Key QMatrix integrated circuit IC. In this Kit, the QT2160 is shown working in a battery powered "Standalone" mode, but can connected to a PC and/or User application by simple modifications to the EVK2160A evaluation board. the QT2160 is configured with 8 individual keys plus 8 keys configured as a slider. The kit provides a convenient reference design and lets designers visualize discrete touch buttons, the guard channel and LED control. It works as a standalone system, but can also be connected to a host or PC using the 9206 USB plug-in card. The included software can configure a number of device parameters to evaluate device operation. The device comes fully assembled, tested and documented.
- .
- Visualize discrete touch buttons
- .
- Standalone, PC, or host interface
- .
- QT2160 is configured with 8 individual keys plus 8 keys configured as a slider
- .
- It uses AT42QT2160-MMU "QT2160" 16 Key QMatrix integrated circuit
- .
- AKS is a global setting for the 8 individual keys
- .
- EVK2160A can be connected to user electrodes, using pads X0-X7 and Y0, Y1
