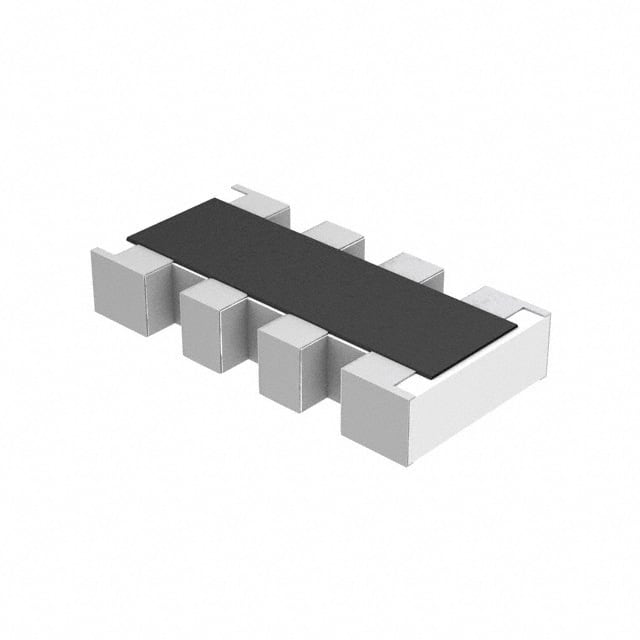

EXB28V471JX

PANASONIC ELECTRONIC COMPONENTS  EXB28V471JX  电阻阵列, 凸式端子, 0402X4, 470R 5%

The EXB28 series are isolated thick film chip resistor networks with convex termination. The Resistance range includes E24 decade values from 10 ohm to 1Mohm. These integrated discrete resistors can effectively reduce PCB space with high component reliability and more efficient for pick and place application.

.

Automotive grade AEC-Q200 compliant

.

EIA 0402 resistor array

.

4 resistors in 2mm × 1mm size with 8 terminals

.

Power rating of 0.063W/element at 70°C

.

±5% tolerance

.

Improvement of placement efficiency

.

Meets IEC 60115-9, JIS C 5201-9 and EIAJ RC-2129 standards

.

Jumpers are also available

.

Operating temperature range -55°C to 125°C
