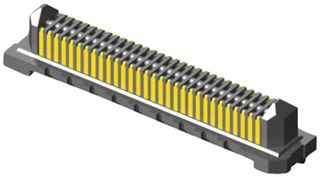

ERM8-050-02.0-S-DV-TR

SAMTEC  ERM8-050-02.0-S-DV-TR  堆叠板连接器, ERM8系列, 100 触点, 针座, 0.8 mm, 表面安装　, 2 排

ERM8 系列坚固高速管座，2 型

此类 的板对板 ERM8 系列 SMT、节距为 0.8mm 的高速管座，其坚固边缘速率触点上带有 0.76 μm 镀金，印刷电路板引线则镀锡。 此类 ERM8 系列的板对板系列是 SMT、节距为 0.8mm 的高速 2 型管座，总板高为 5.97mm，晶片高度为 1.61mm。

绝缘体材料：黑色 LCP

工作温度：-55→125°C

### 注

与 ERF8 系列插座配用，请参见库存号 766-8868（典型）。

### 0.8mm 板对板 - Samtec

得捷:
CONN HDR 100POS SMD GOLD

欧时:
Header 0.8mm PCB SMT style2 50+50way

e络盟:
堆叠板连接器, ERM8系列, 100 触点, 针座, 0.8 mm, 表面安装　, 2 排

艾睿:
Reduce safety concerns with this micro high speed terminal strip ERM8-050-02.0-S-DV-TR header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.8 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 200 VAC. It has a straight body orientation. This device has a maximum current rating of 2.2 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. ERM8-050-02.0-S-DV-TR is housed in black liquid crystal polymer. This product is 46 mm long, 5.97 mm tall and 5.6 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Micro High Speed Terminal Strip HDR 100 POS 0.8mm Solder ST SMD T/R

Verical:
Conn Micro High Speed Terminal Strip HDR 100 POS 0.8mm Solder ST SMD T/R

Newark:
# SAMTEC  ERM8-050-02.0-S-DV-TR  Stacking Board Connector, ERM8 Series, 100 Contacts, Header, 0.8 mm, Surface Mount, 2 Rows
