EFM32GG380F1024-QFP100T

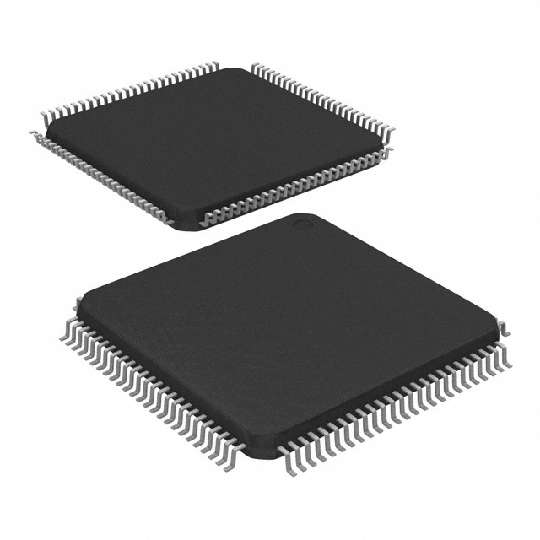

SILICON LABS  EFM32GG380F1024-QFP100T  微控制器, 32位, ARM 皮质-M3, 48 MHz, 1 MB, 128 KB, 100 引脚, LQFP

The is an ARM Cortex-M3 based 32-bit Microcontroller with speeds up to 48MHz and is part of the Giant Gecko family of energy friendly devices. Built on top of a low-power platform that includes innovative low energy techniques, fast wake-up times and energy saving modes the device is ideal for energy sensitive applications. In addition, this device includes 1024kB flash, 128kB RAM, 83 digital I/Os, 4 x 16-bit timers and multiple communication interfaces.

.

High performance 32-bit processor at up to 48MHz

.

Memory protection unit

.

Flexible energy management system

.

12-channel DMA Controller

.

12-channel Peripheral reflex system PRS for autonomous inter-peripheral signalling

.

Hardware AES with 128/256-bit keys in 54/75 cycles

.

16-bit Low energy timer

.

24-bit Real-time counter and 32-bit Real-time counter

.

3 x 8-bit Pulse counter with asynchronous operation

.

Watchdog timer with dedicated RC oscillator at 50nA

.

RTC and retention registers in a separate power domain, available in all energy modes

.

Operation from backup battery when main power drains out

.

External Bus Interface for up to 4x256 MB of external memory mapped space

.

TFT Controller with Direct Drive

.

3 x Universal synchronous/asynchronous receiver/transmitter

.

UART/SPI/SmartCard ISO 7816/IrDA

.

2 x Universal asynchronous receiver/transmitter

.

2 x Low energy UART

.

2 x I²C Interface with SMBus support

.

Universal serial bus USB with host and OTG support
