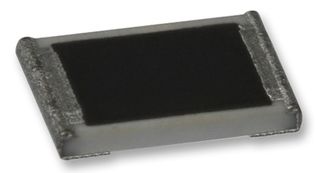

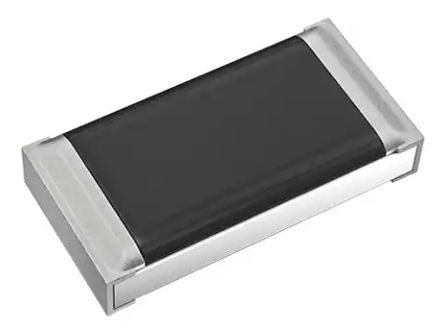

ERJ2RKF4643X

PANASONIC ELECTRONIC COMPONENTS  ERJ2RKF4643X  片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 464 kohm, 50 V, 0402 [1005公制], 100 mW, ± 1%

0201 格式器，ERJx Series 系列类型 2R

精密厚膜片式电阻器

小尺寸，轻型

高可靠性

金属上釉厚膜电阻元件和三层电极

与贴片机兼容

提供盘带包装

适用于回流焊接和流动焊接

低电阻容差±1%

符合 RoHS

### 标准

符合 IEC 60115-8、JIS C 5201-8、EIAJ RC-2134B、AEC-Q200 标准（ERJXG 和 ERJ1R 除外）

立创商城:
464kΩ ±1% 100mW

欧时:
Panasonic ERJ2RK 系列 0.1W 464kΩ 精密厚膜SMD 电阻器 ERJ2RKF4643X, ±1%, ±100ppm/°C, 0402 封装

e络盟:
SMD片式电阻, 厚膜, 0402 [1005公制], 464 kohm, ERJ2R 系列, 50 V, 厚膜, 100 mW

艾睿:
Use this ERJ-2RKF4643X fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 464K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with thick film technology. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This part has an operating temperature of -55 to 155 °C.

安富利:
Res Thick Film 0402 464K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD Punched Carrier T/R
