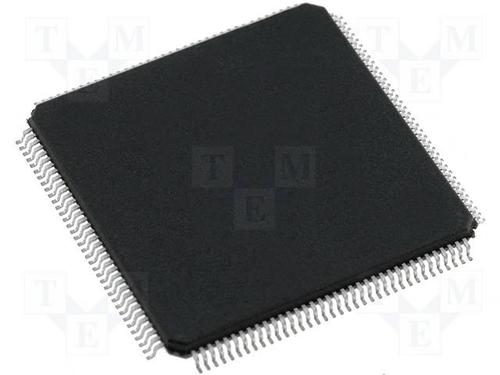

EP2C8T144I8N

ALTERA  EP2C8T144I8N  芯片, FPGA, CYCLONE II, 8K单元, TQFP144

The is a Cyclone® II FPGA with an extend density of 8256 logic elements LEs and provide up to 182 usable I/O pins and up to 1.1Mb of embedded memory. Cyclone II FPGA is manufactured on 300mm wafers using TSMC"s 90nm low-k dielectric process to ensure rapid availability and low cost. By minimizing silicon area, Cyclone II devices can support complex digital systems on a single chip at a cost that rivals that of ASICs. Unlike other FPGA vendors who compromise power consumption and performance for low-cost, "s latest generation of FPGAs-Cyclone II FPGA, offers 60 percent higher performance and half the power consumption of competing 90nm FPGA. It contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between logic array blocks LABs, embedded memory blocks and embedded multipliers.

.

Embedded multipliers

.

Advanced I/O support

.

Flexible clock management circuitry

.

Altera megafunction and Altera MegaCore function support

.

Altera Megafunctions Partners Program AMPPSM megafunction support

.

Programmable bus-hold feature

.

Programmable output drive strength feature

.

Programmable delays from the pin to the IOE or logic array

.

Tri-state with weak pull-up on I/O pins before and during configuration

.

Programmable open-drain outputs

.

Series on-chip termination support
