PANASONIC ELECTRONIC COMPONENTS ELJFAR22KF2 表面贴装高频电感器, ELJ-FA系列, 220 nH, ± 10%, 1210 [3225 公制], 230 MHz, 0.29 ohm
The ELJ-FA series Fixed Chip Inductor capable of being re-flow or flow soldered. It is suitable for AV equipment and various types of general electronic equipment.
- .
- General use wire wound, resin moulded chip inductor
- .
- Wide line-up from 2520 to 4532 case sizes
- .
- Good for mounting
e络盟:
PANASONIC ELECTRONIC COMPONENTS ELJFAR22KF2 表面贴装高频电感器, ELJ-FA系列, 220 nH, ± 10%, 1210 [3225 公制], 230 MHz, 0.29 ohm
Chip1Stop:
Inductor General Purpose Chip Molded Wirewound 220nH 10% 25.2MHz 25Q-Factor Ferrite 360mA 290mOhm DCR 1210 T/R
额定电流 360 mA
电感 220 nH
自谐频率 230 MHz
Q值 25.0
产品系列 ELJFA
电感公差 ±10 %
电阻DC） 290 mΩ
额定电流DC 360 mA
电阻DC Max 0.29 Ω

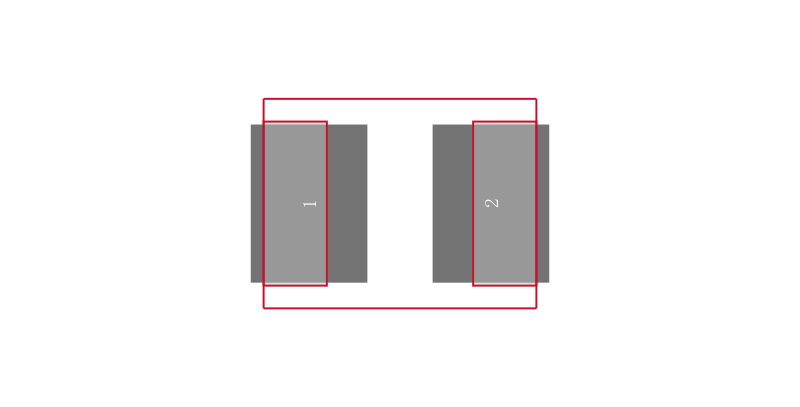

安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210
长度 3.5 mm
宽度 2.7 mm
高度 2.4 mm
封装公制 3225
封装 1210
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, Industrial, Imaging, Video & Vision, Audio
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
