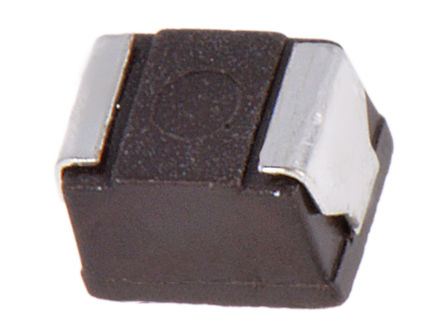

PANASONIC ELECTRONIC COMPONENTS ELJPA4R7MF2 表面贴装高频电感器, ELJ-PA系列, 4.7 µH, ± 20%, 1210 [3225 公制], 35 MHz, 0.23 ohm
High Power Type PF, PE, PC, PA, PB, LC, LA
■ Features
● Low DCR and large current capability, suitable for power circuitry.
● Wire wound, resin molded chip inductor. PC, PA, PB, LC, LA type
● Unique Ceramic Core/Laser-cut technology PF, PE type
● Capable of being Re-fl ow or fl ow soldered.
● Wide line-up from 1005 to 4532 case sizes.
● Good for mounting.
● RoHS compliant
■ Recommended Applications
● AV equipment, Wireless communication equipment and various types of general electronic equipment.
额定电流 700 mA
电感 4.7 µH
自谐频率 35.0 MHz
产品系列 ELJPA
共振频率 46.0 MHz
电感公差 ±20 %
测试频率 7.96 MHz
电阻DC） 230 mΩ
额定电流DC 700 mA
电阻DC Max 0.23 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
封装公制 3225
封装 1210
工作温度 -20℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
