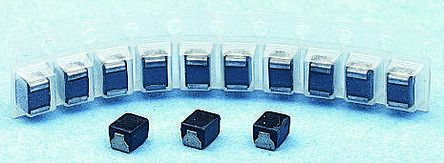

PANASONIC ELECTRONIC COMPONENTS ELJPA680KF2 表面贴装高频电感器, ELJ-PA系列, 68 µH, ± 10%, 1210 [3225 公制], 7.5 MHz, 3.2 ohm
High Power Type PF, PE, PC, PA, PB, LC, LA
■ Features
● Low DCR and large current capability, suitable for power circuitry.
● Wire wound, resin molded chip inductor. PC, PA, PB, LC, LA type
● Unique Ceramic Core/Laser-cut technology PF, PE type
● Capable of being Re-fl ow or fl ow soldered.
● Wide line-up from 1005 to 4532 case sizes.
● Good for mounting.
● RoHS compliant
■ Recommended Applications
● AV equipment, Wireless communication equipment and various types of general electronic equipment.
额定电流 190 mA
容差 ±10 %
电感 68 µH
自谐频率 7.50 MHz
产品系列 ELJPA
共振频率 7.50 MHz
电感公差 ±10 %
电阻DC） 3.2 Ω
额定电流DC 190 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
电阻DC Max 3.2 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2.2 mm
封装公制 3225
封装 1210
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
