VISHAY EGL41D-E3/96 快速/超快二极管, 单, 200 V, 1 A, 1 V, 50 ns, 30 A

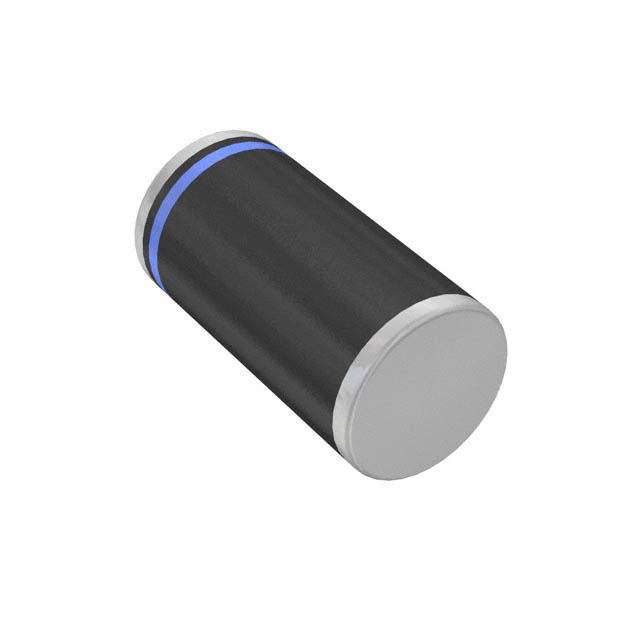

The is a surface-mount glass-passivated Ultra-fast Rectifier with moulded epoxy over glass body case and solderable matte tin-plated terminals. It has two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in high frequency rectification and free-wheeling application in switching mode converters and inverters.
- .
- Cavity-free glass-passivated junction
- .
- Ideal for automated placement
- .
- Ultrafast reverse recovery time
- .
- Low switching losses, high efficiency
- .
- High forward surge capability
- .
- Meets environmental standard MIL-S-19500
- .
- Meets MSL level 1
- .
- 260°C/40sec Solder dip
正向电压 1V @1A
反向恢复时间 50 ns
正向电流 1 A
最大正向浪涌电流（Ifsm） 30 A
正向电压Max 1 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AB
长度 5.2 mm
封装 DO-213AB
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Automotive, Aerospace, Defence, Military, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EGL41D-E3/96 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BYM12-200-E3/96 威世 | 完全替代 | EGL41D-E3/96和BYM12-200-E3/96的区别 |
EGL41G-E3/96 威世 | 类似代替 | EGL41D-E3/96和EGL41G-E3/96的区别 |
BYM12-400-E3/96 威世 | 类似代替 | EGL41D-E3/96和BYM12-400-E3/96的区别 |
