EMI T网络滤波器录音打包自动插入额定电流： 5 A EMI T Network Filters Taped packaged for automated insertion Rated current: 5 A

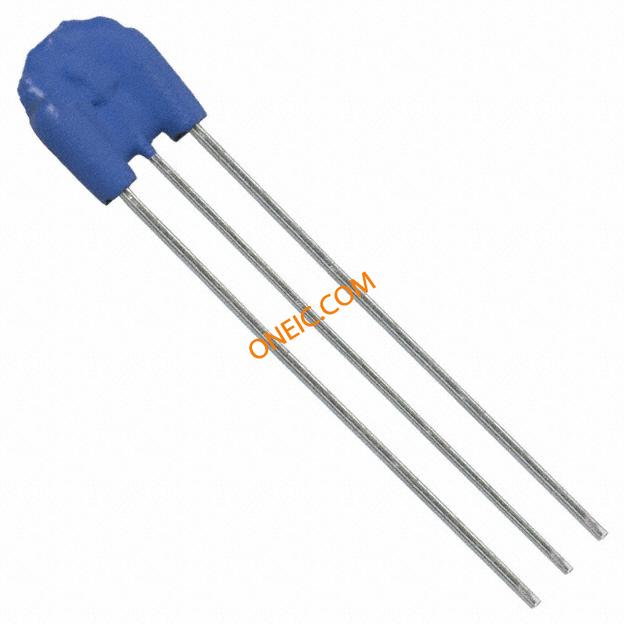

LC T-Type EMI Filter 3rd Order Low Pass 1 Channel R = 0.05Ohms, C = 270pF 5A Radial - 3 Leads
得捷:
FILTER LCT 0.05 OHM/270PF TH
艾睿:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
安富利:
EMI Filter 25dB 5A 50VDC PC Pins Thru-Hole Ammo Pack
Chip1Stop:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
TME:
Filter: anti-interference; Mounting: THT; 5A; -25÷85°C; 50V; 270pF
Verical:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
MASTER:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
Electro Sonic:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
工作电压 50 V
额定电流 5 A
电容 270 pF
容差 ±20 %
通道数 1
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压Max 50 VDC
额定电压 50 V
安装方式 Through Hole
封装 Radial - 3 Leads

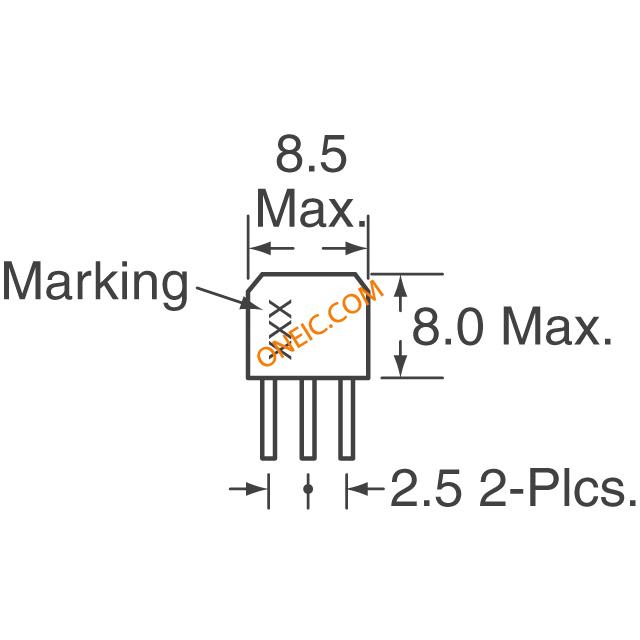

长度 9 mm
宽度 3.2 mm
高度 8 mm
封装 Radial - 3 Leads
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
