EMI T网络滤波器录音打包自动插入额定电流： 5 A EMI T Network Filters Taped packaged for automated insertion Rated current: 5 A
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
得捷:
FILTER LCT 0.05 OHM/22PF TH
贸泽:
EMI 滤波器电路 22pF 20% 50VOLT 5AMP
艾睿:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo Pack
安富利:
EMI Filter 25dB 5A 50VDC PC Pins Thru-Hole Ammo Pack
Chip1Stop:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
TME:
Filter: anti-interference; Mounting: THT; 5A; -25÷85°C; 50V; 22pF
Verical:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
Newark:
# BOURNS JW MILLER EMI220T-RC Power Line Filter, 22 pF, 50 V, 5 A, EMI, RFI, Through Hole
MASTER:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
Online Components:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
Electro Sonic:
EMI Filter T-Circuit 25dB 5A 50VDC PC Pins Thru-Hole Automotive Ammo
额定电压DC 50.0 V
工作电压 50 V
额定电流 5 A
电容 22 pF
容差 ±20 %
通道数 1
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压Max 50 VDC
额定电压 50 V
安装方式 Through Hole
封装 Radial - 3 Leads

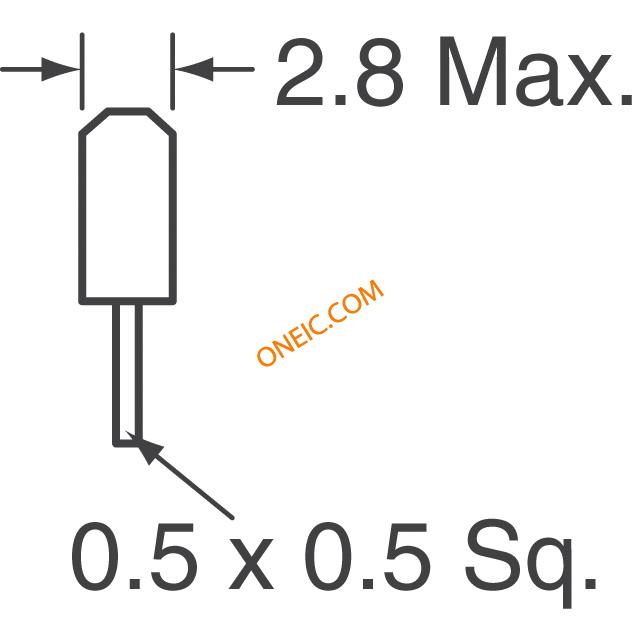

长度 9 mm
宽度 3.2 mm
高度 8 mm
封装 Radial - 3 Leads
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
