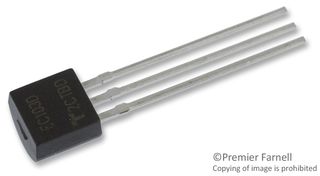

LITTELFUSE EC103D 三端双向可控硅开关
E5
General Description
The Teccor line of sensitive SCR semiconductors are half-wave unidirectional, gate-controlled rectifiers SCR-thyristor which complement Teccor"s line of power SCRs. This group of packages offers ratings of 0.8 A to 10 A, and 200 V to 600 V with gate sensitivities of 12 µA to 500 µA. For gate currents in the 10 mA to 50 mA ranges, see “SCRs” section of this catalog.
The TO-220 and TO-92 are electrically isolated where the case or tab is internally isolated to allow the use of low-cost assembly and convenient packaging techniques.
Features
• RoHS Compliant
• Electrically-isolated TO-220 package
• High voltage capability — up to 600 V
• High surge capability — up to 100 A
• Glass-passivated chip
Compak Features
• Surface mount package — 0.8 A series
• New small-profile three-leaded Compak package
• Four gate sensitivities available
• Packaged in embossed carrier tape with 2,500 devices per reel
• Can replace SOT-223
触点数 3
额定电压DC 400 V
额定电流 510 mA
针脚数 3
保持电流 5 mA
保持电流Max 5 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3
封装 TO-226-3
长度 4.73 mm
宽度 3.68 mm
高度 4.98 mm
封装 TO-226-3
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Bulk
制造应用 消费电子产品, 工业, HVAC, 电机驱动与控制, 照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EC103D Littelfuse 力特 | 当前型号 | 当前型号 |
EC103DRP 力特 | 完全替代 | EC103D和EC103DRP的区别 |
EC103D1RP 力特 | 完全替代 | EC103D和EC103D1RP的区别 |
EC103D2RP 力特 | 完全替代 | EC103D和EC103D2RP的区别 |
