ANALOG DEVICES EV-ADF4002SD1Z 评估板, 锁相环频率合成器

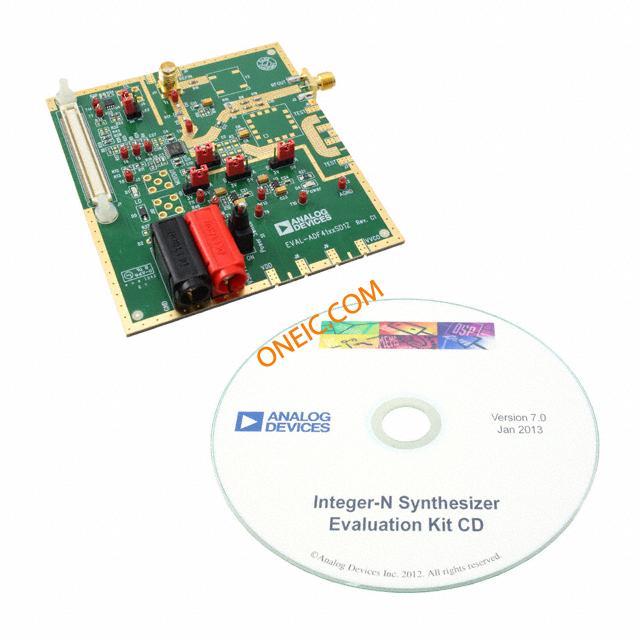

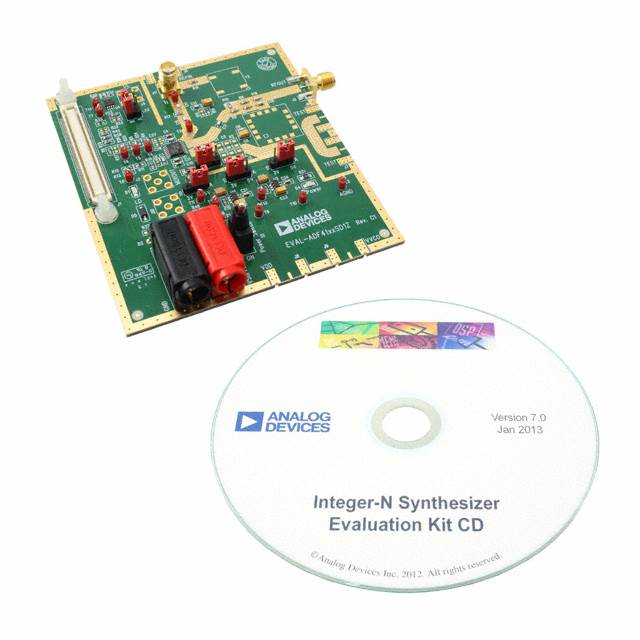

The is an evaluation kit designed to allow the user to evaluate the performance of the ADF4002 frequency synthesizer for PLLs. The ADF4002 is used to implement local oscillators in the up conversion and down conversion sections of wireless receivers and transmitters. The board contains the footprint for an ADF4002 synthesizer, an SMA connector for the reference input, power supplies and an RF output. There is also a footprint for a loop filter and a VCO on board. The evaluation kit software that is compatible with Windows XP and later versions to allow easy programming of the synthesizer. This evaluation board requires an SDP controller board for connection to the PC. The SDP controller board connects to the PC via USB 2.0. The evaluation board will connect to the SDP controller board and it cannot be connected directly to the PC. The evaluation software running on the PC will communicate through the SDP controller board, to the evaluation board.
- .
- General purpose PLL evaluation board excluding VCO, loop filter and TCXO
- .
- Accompanying software allows complete control of synthesizer functions from a PC
- .
- 400MHz bandwidth
- .
- 2.7V to 3.3V power supply
- .
- Three wire serial interface
- .
- 200MHz phase detector
- .
- Analog and digital lock detect
- .
- Hardware and software power down mode
- .
- Programmable charge pump currents
ESD sensitive device, take proper precaution while handling the device.
