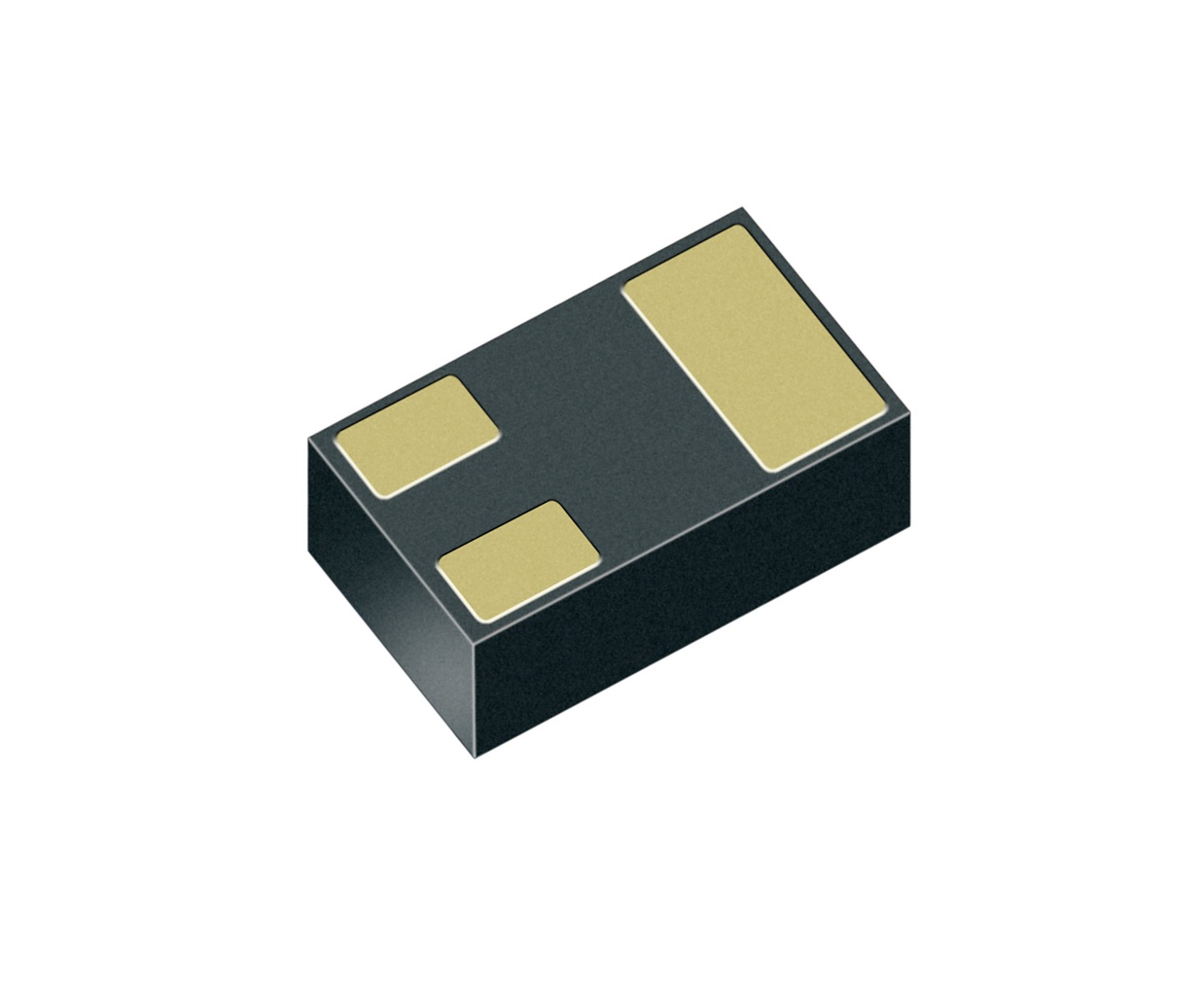

INFINEON ESD8V0L2B03LE6327XTMA1 静电保护装置, TVS, 26 V, TSLP-3-1, 3 引脚
The ESD8V0L2B-03L E6327 is a low capacitance TVS Diode for ESD/transient protection of high-speed data lines in 3.3/5/12V applications according to up to ±25KV contact IEC61000-4-2 ESD, 40A 5/50ns IEC61000-4-4 EFT and up to 2.5A 8/20µs IEC61000-4-5 surge.
- .
- Smallest form factor down to 1.0 x 0.6 x 0.4mm³
- .
- Ultra low dynamic resistance down to 0.3R
- .
- Very low capacitance down to 2pF
- .
- <1nA Very low reverse current
- .
- Very low series inductance down to 0.4nH
- .
- -55 to 125°C Operating temperature range
额定电压DC 8.00 V
电容 7 pF
针脚数 3
钳位电压 26 V
最小反向击穿电压 23 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TSLP-3-1
长度 650 µm
宽度 600 µm
高度 0.35 mm
封装 TSLP-3-1
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 Commu, 通信与网络, Computers & Computer Peripherals, Consumer Electronics, 工, Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, , 通用, 成像, 消费电子产品, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
