ESD9C5.0ST5G

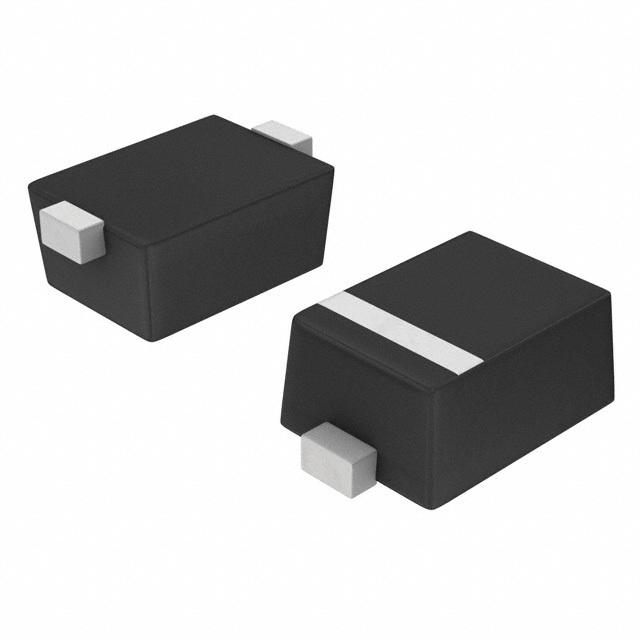

ON SEMICONDUCTOR  ESD9C5.0ST5G  静电保护装置, TVS, SOD-923, 2 引脚, 5 V, 150 mW 新

极性Polarization| 单向 Unidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 5V 反向击穿电压VBRBreakdown Voltage| 11V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 峰值脉冲电流IPPmPeak Forward Surge Current| 额定耗散功率PdPower dissipation| 0.15W/150mW Description & Applications| STransient Voltage Suppressors Micro-Packaged Diodes for ESD Protection；pecification Features •Low Capacitance 6.2 pF - 13 pF •Low Clamping Voltage •Small Body Outline Dimensions:0.039″ x 0.024″ 1.0 mm x 0.60 mm •Low Body Height: 0.016″ 0.40 mm Max •Stand-off Voltage: 3.3 V, 5 V •Low Leakage •Response Time < 1 ns •ESD Rating of Class 3 > 16 kV per Human Body Model •IEC61000-4-2 Level 4 ESD Protection •These are Pb-Free Devices 描述与应用| 瞬态电压 抑制器 微型封装的ESD保护;规格特性 •低电容6.2 pF - 13 PF •低钳位电压 •小体外形尺寸：0.039“×0.024”（1.0毫米x0.60毫米） •低身高：0.016“（0.40毫米）最大 •关断电压电压：3.3 V，5 V •低漏 •响应时间<1纳秒 •每人体模型ESD额定值的3类（16千伏） •IEC61000-4-24级ESD保护 •这些都是无铅设备
