ESD 保护,ESD 系列设计用于保护 ESD(静电放电)电压敏感组件。 极佳的夹持能力、低泄漏和快速响应时间,为暴露在 ESD 环境中的设计提供同类最佳保护。
瞬态电压抑制器,用于 ESD 保护,ESD 系列
设计用于保护 ESD(静电放电)电压敏感组件。 极佳的夹持能力、低泄漏和快速响应时间,为暴露在 ESD 环境中的设计提供同类最佳保护。
欧时:

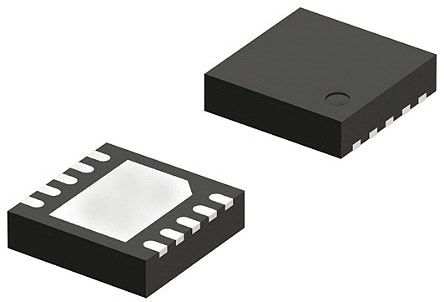

TVS 二极管 ON Semiconductor ESD7504MUTAG 单向, 13.7V, 10针 U-DFN2510封装
立创商城:
ESD7504MUTAG
得捷:
TVS DIODE 3.3VWM 10UDFN
贸泽:
ESD Suppressors / TVS Diodes LOW CAP ESD Protection
e络盟:
静电保护装置, UDFN, 10 引脚, 3.3 V, ESD75 Series
艾睿:
Protect your electronic components and circuit from dangerous electrostatic discharge with this tvs ESD7504MUTAG ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±15@Contact Disc kV. This device&s;s maximum clamping voltage is 13.7Typ V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a quad common anode configuration.
安富利:
ESD Suppressor TVS ±15KV 10-Pin UDFN T/R
Verical:
ESD Suppressor Diode TVS Uni-Dir 3.3V 10-Pin UDFN T/R
Newark:
# ON SEMICONDUCTOR ESD7504MUTAG ESD Protection Device, 13.7 V, UDFN, 10 Pins, 3.3 V
力源芯城:
TVS,USB3.0 ESD保护阵列
Win Source:
TVS DIODE 3VWM 10UDFN
工作电压 3.3 V
电容 0.55 pF
击穿电压 5 V
针脚数 10
钳位电压 13.7 V
测试电流 1 mA
最小反向击穿电压 4 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 10
封装 UDFN-10
长度 2.5 mm
宽度 1 mm
高度 0.5 mm
封装 UDFN-10
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 通信与网络, Imaging, Video & Vision, eSATA, 工业, 成像, 视频和目视, Display Port, Computers & Computer Peripherals, USB 3.0, HDMI, Communications & Networking, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ESD7504MUTAG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
ESD1014MUTAG 安森美 | 类似代替 | ESD7504MUTAG和ESD1014MUTAG的区别 |
ESD8004MUTAG 安森美 | 类似代替 | ESD7504MUTAG和ESD8004MUTAG的区别 |
