ANALOG DEVICES EVAL-RS485FDEBZ 评估板, RS485FDEBZ, 全双工, 14SOIC

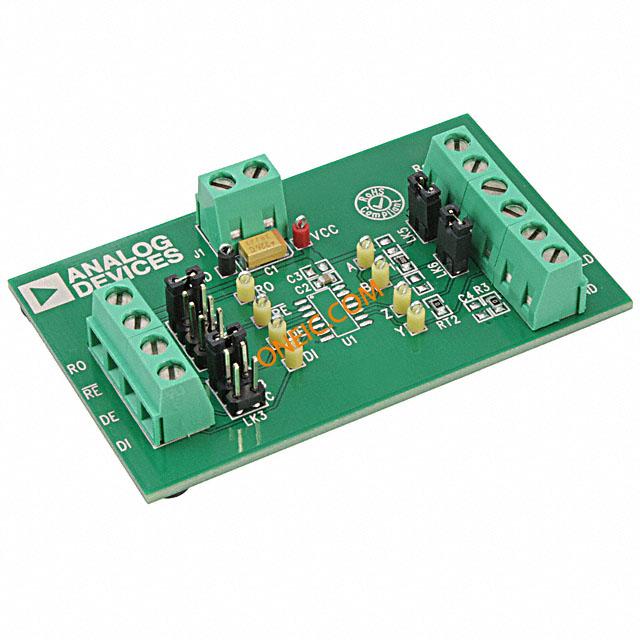

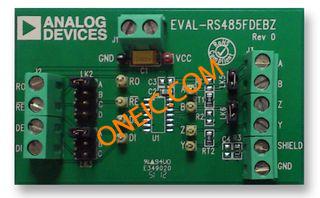

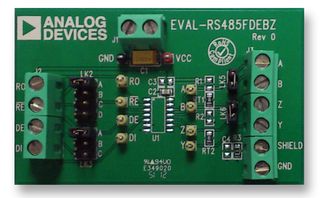

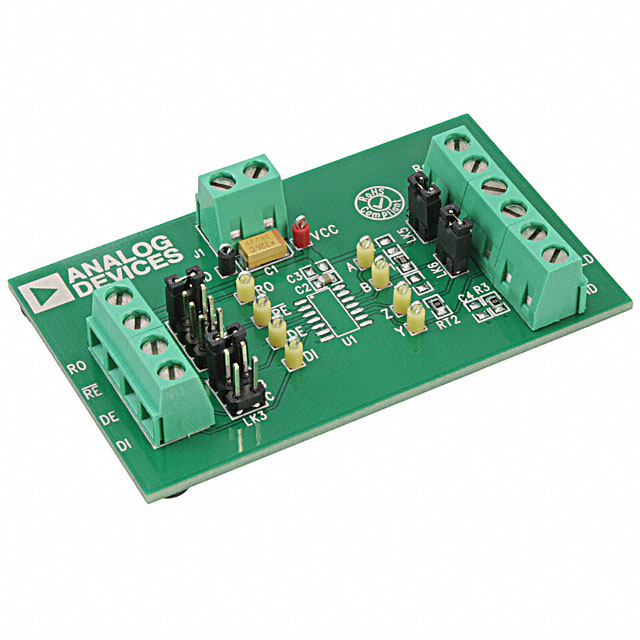

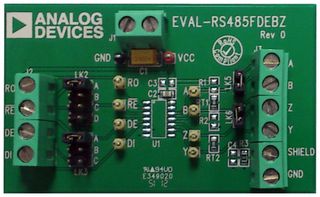

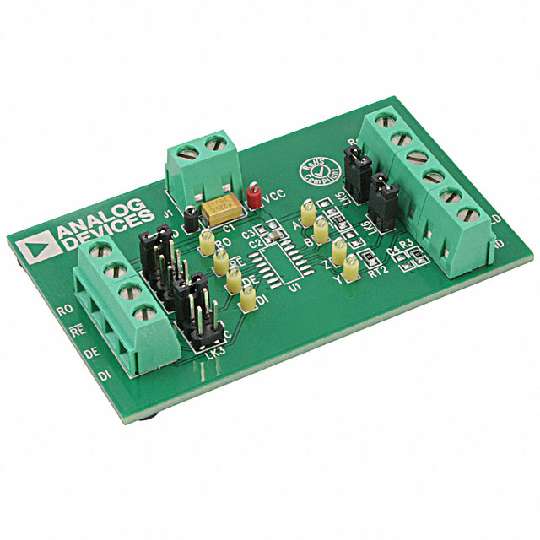

The is an evaluation board for full duplex RS485 transceiver with standard 14 lead SOIC footprints. It allows quick and easy evaluation of full duplex RS485 transceivers with standard 8 lead SOIC footprints. The evaluation board allows interfacing via screw terminal block to digital I/O for driver input DI and receiver output RO. Bus signals A, B, Y and Z full duplex bus can be connected to a bus screw terminal block. Termination resistors are fitted across A and B, as well as Y and Z. These can be connected in half duplex configuration A to Y, B to Z, in order to evaluate the RS485 driver. Footprints are provided for pull up and pull down biasing resistors on the receiver inputs in order to provide the option to evaluate an RS 485 receiver with this configuration.
- .
- Standard 14 lead SOIC footprint
Devices for evaluation on the board must be ordered separately.
