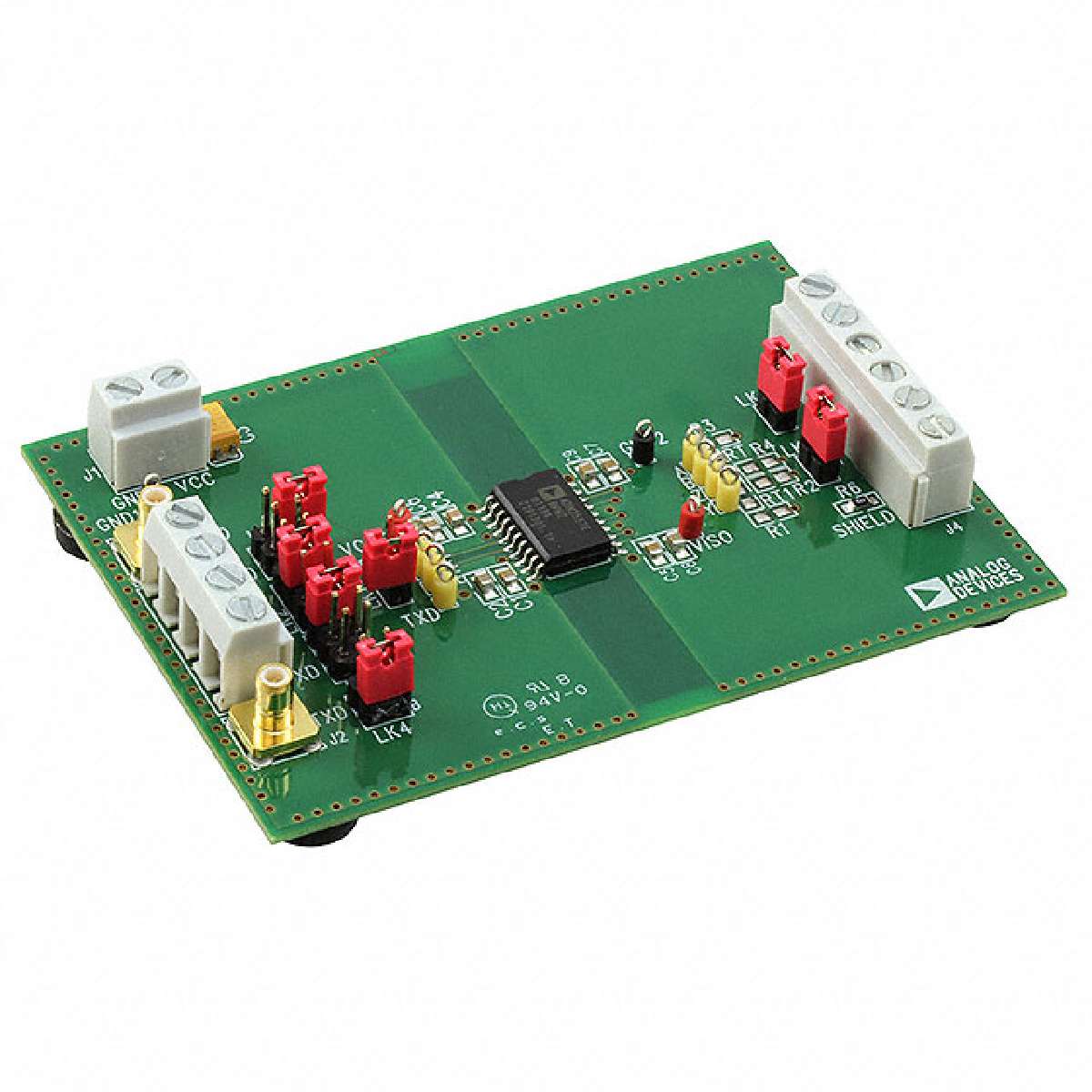

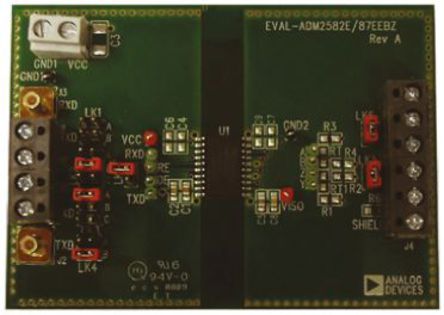

Evaluation Board for ADM2587E Isolated RS-485 Transceiver
Power and signal isolated RS-485/RS422 transceiver 500kbps
Convenient connections for power and signal through screw terminal blocks
Configurable as half-duplex or full-duplex
5 or 3.3 Volts operation
Easily configurable through jumper connections
Test points for measuring all signals
Layout optimized for emissions according to the AN-0971 Application Note
Passes the EN550222001 Class B emissions standard
