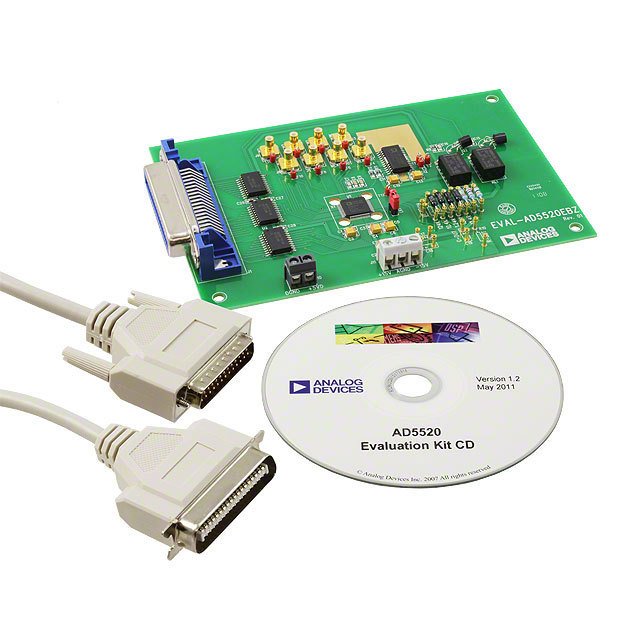

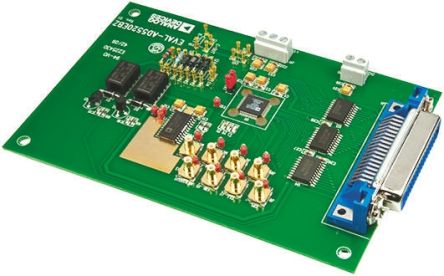

ANALOG DEVICES EVAL-AD5520EBZ 评估模块, AD5520EBZ
Evaluation Board for AD5520 Per-pin Parametric Measurement Unit
Evaluation Board for AD5520; Per-pin Parametric Measurement Unit / Source Measure Unit
Use in semiconductor automatic test equipment and precision measurement instruments
Contains programmable modes to force a pin voltage and measure the corresponding current or force a current and measure the voltage
### 传感器接口，Analog Devices
得捷:
BOARD EVAL FOR AD5520
欧时:
Analog Devices Parametric Measurement Unit 模拟开发套件 EVAL-AD5520EBZ
艾睿:
Evaluation Board For Per Pin Parametric Measurement Unit/Source Measure Unit
安富利:
The AD5520 is a single-channel, per pin parametric measurement unit PPMU for use in semiconductor automatic test equipment. The part is also suited for use as a source measurement unit for instrumentation applications. It contains programmable modes to force a pin voltage and measure the corresponding current, or force a current and measure the voltage. The AD5520 can force/measure over a ±11 V range or user-programmable currents up to ±4 mA with its on-board force amplifier. An external amplifier is required for wider current ranges. The device provides a force sense capability to ensure accuracy at the tester pin. A guard output is also available to drive the shield of a force/sense pair. The AD5520 is available in a 64-lead LQFP package.
Newark:
# ANALOG DEVICES EVAL-AD5520EBZ Evaluation Module, Pin Parametric Measurement Unit / Source Measure Unit, AD5520
