ESD 保护器,On Semiconductor### 瞬态电压抑制器,On Semiconductor
ESD 保护器,On Semiconductor
### 瞬态电压抑制器,On Semiconductor
得捷:
TVS DIODE 3VWM 9-WLCSP
欧时:
### ESD 保护器,On Semiconductor### 瞬态电压抑制器,On Semiconductor
贸泽:
ESD 抑制器/TVS 二极管 4 CHAN ESD PROT
艾睿:
Protect your investments from electrostatic discharge by implementing this tvs ESD5384NCTBG ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±8@Contact Disc kV. This ESD diode has a minimum operating temperature of -30 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a quint configuration. Its capacitance value is 29 pF.
Allied Electronics:

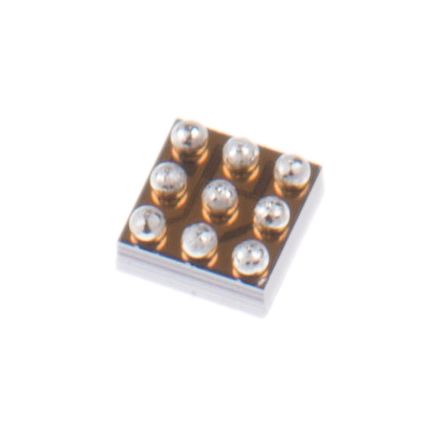

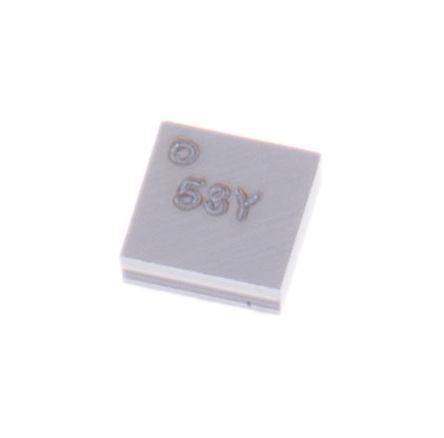

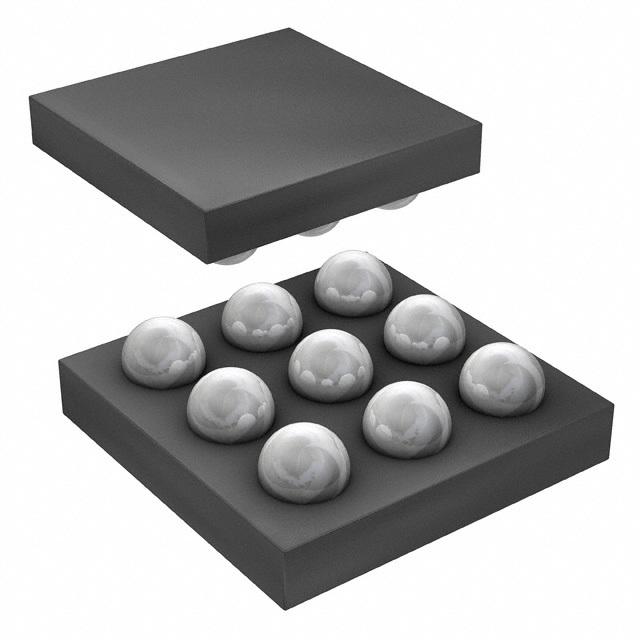

ESD5384NCTBG, Quint ESD Protection Array, 9-Pin WLCSP
安富利:
ESD Suppressor TVS ±15KV 9-Pin WLCSP T/R
Chip1Stop:
ESD Suppressor TVS ±15kV 9-Pin WLCSP T/R
Verical:
ESD Suppressor Diode TVS Uni-Dir 3V 9-Pin WLCSP T/R
工作电压 3 V
电容 29 pF
无卤素状态 Halogen Free
击穿电压 6 V
最小反向击穿电压 6 V
工作温度Max 85 ℃
工作温度Min -30 ℃
安装方式 Surface Mount
引脚数 9

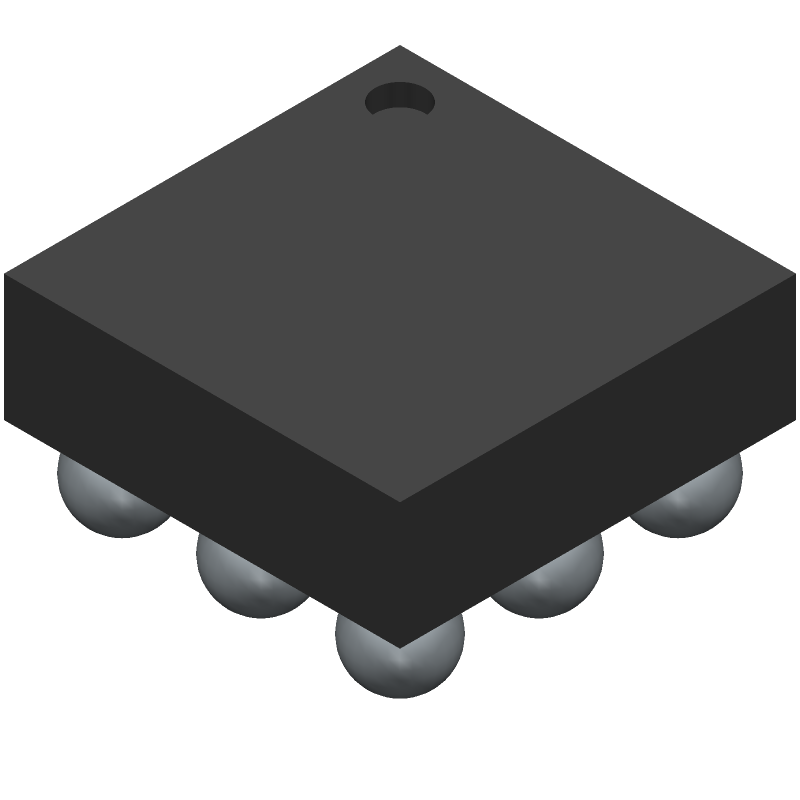

封装 WLCSP-9
长度 1.14 mm
宽度 1.14 mm
高度 0.63 mm
封装 WLCSP-9
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 HDMI Control Line Interfaces, HDMI
RoHS标准 RoHS Compliant
含铅标准 Lead Free
