ECA1CM471

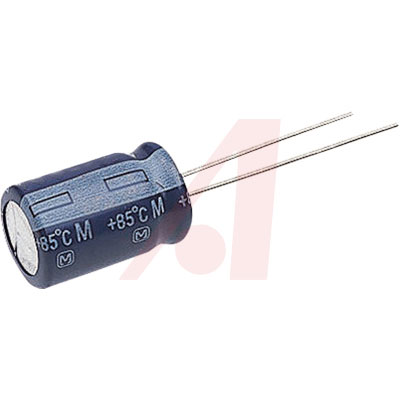

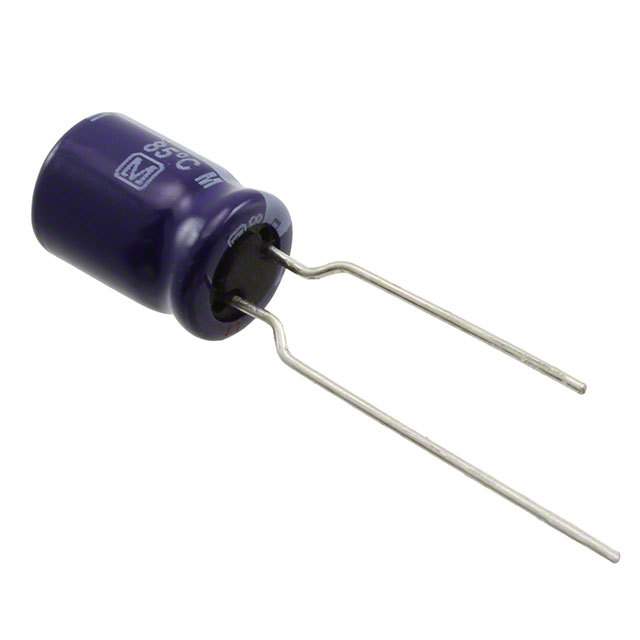

PANASONIC ELECTRONIC COMPONENTS  ECA1CM471  铝电解电容, AEC-Q200 M系列, 470 µF, ± 20%, 16 V, 8 mm, 径向引线

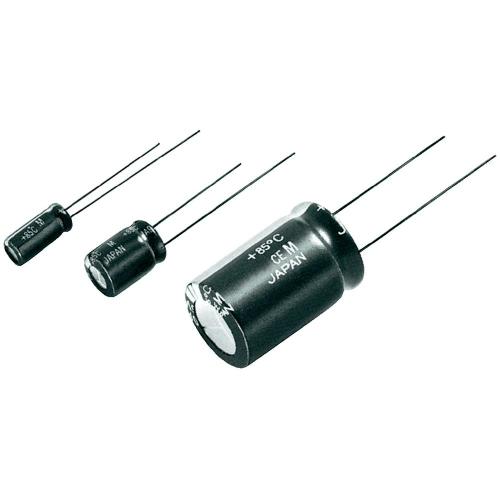

M 系列

M 系列 A 型电解器在 +85°C 时具有 2000 小时极佳的耐受性。

尺寸小于 SU 系列

高可靠性

高波纹电流

低阻抗

长寿命

完全密封

立创商城:

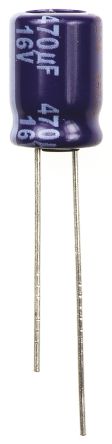

470uF 16V

欧时:
### M 系列Panasonic M 系列 A 型电解电容器在 +85°C 时具有 2000 小时极佳的耐受性。尺寸小于 SU 系列 高可靠性 高波纹电流 低阻抗 长寿命 完全密封 ### 应用由于具有高可靠性，Panasonic M 系列 A 型电解电容器适用于一般应用和工业仪器。 电容容差 % | 20 ---|--- 工作温度 °C | \- 25 至 +85 泄漏电流 | 0.01CV 或 3μA（以较大值为准） 预期寿命（小时 @ 85°C） | 2000 ### 径向，85°C

艾睿:
The pure aluminum anode on the electrolytic ECA-1CM471 electrolytic capacitor, designed from Panasonic, is the solution to your signal filtering needs. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 75.2@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 11.5 mm tall with a diameter of 8 mm. The ECA-1CM471 aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 470uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 470uF; Vol-Rtg 16V; Radial; nHg

安富利:
Cap Aluminum 470uF 16V 20% 8 X 11.5mm Radial Aluminum Cylindrical Can 3.5mm 440mA 2000 hr 85°C Bulk

Chip1Stop:
Cap Aluminum Lytic 470uF 16V 20% 8 X 11.5mm Radial 3.5mm 440mA 2000h 85ÂÂ℃ Bulk

Verical:
Cap 470uF 16VDC 20% 8 X 11.5mm RDL 3.5mm 440mA 2000 hr Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ECA1CM471  Aluminium Electrolytic Capacitor, AEC-Q200 M Series, 470 - F, - 20%, 16 V, 8 mm, Radial Leaded
