EEUFC1V151

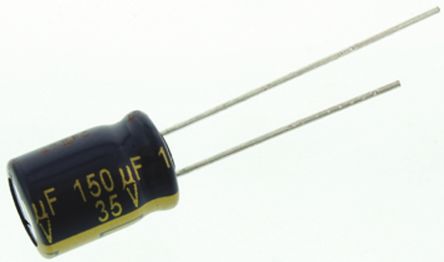

PANASONIC ELECTRONIC COMPONENTS  EEUFC1V151  铝电解电容, AEC-Q200 FC系列, 150 µF, ± 20%, 35 V, 8 mm, 径向引线

FC 系列 120μF - 270μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

欧时:
### FC 系列 120μF - 270μFPanasonic FC 系列 A 型电解电容器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。符合 AEC-Q200 径向引线型 低等效串联电阻 结构小型 高可靠性 低阻抗 高波纹电流 ### 应用Panasonic FC A 型电解电容器符合 AEC-Q200 规格，适用于汽车应用。 高可靠性还使这些电解质电容器特别适用于工业仪器应用。 ### 径向 105°C

立创商城:
150uF 35V

e络盟:
铝电解电容, 150 µF, 35 V, FC系列, ± 20%, 径向引线, 8 mm

艾睿:

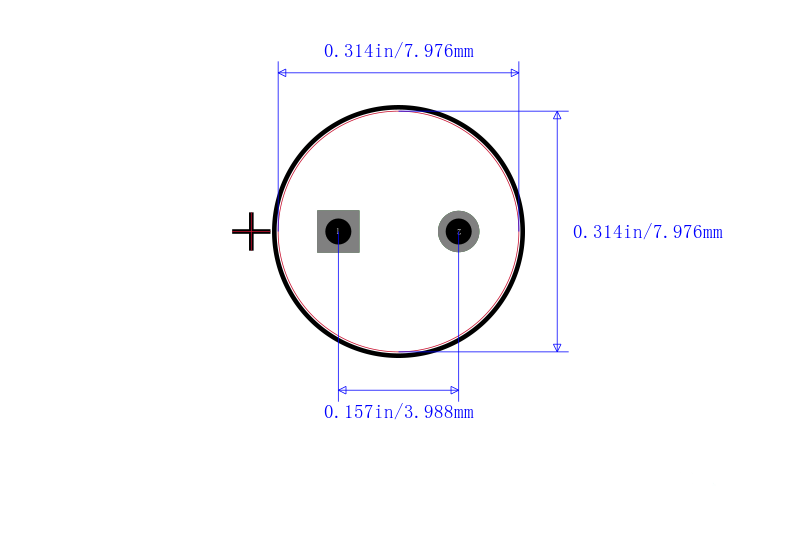

Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Panasonic&s;s electrolytic EEU-FC1V151 aluminum capacitor. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11.5 mm tall with a diameter of 8 mm. Its leakage current is 52.5@2Min μA. Its capacitance value is 150uF. It has a tolerance of 20%. The EEU-FC1V151 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Radial Al Electrolytic Cap; 150uF 35V

安富利:
Cap Aluminum 150uF 35V 20% 8 X 11.5mm Radial 3.5mm 555mA 2000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum 150uF 35V 20% 8 X 11.5mm Radial 3.5mm 555mA 2000h 105 C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 150uF; 35VDC; ±20%

Verical:
Cap 150uF 35VDC 20% 8 X 11.5mm RDL 3.5mm 555mA 2000 hr Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1V151  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 150 - F, - 20%, 35 V, 8 mm, Radial Leaded

儒卓力:
**FC 150uF 35V 20% 8x11/3,5 **
