ESDA25-4BP6

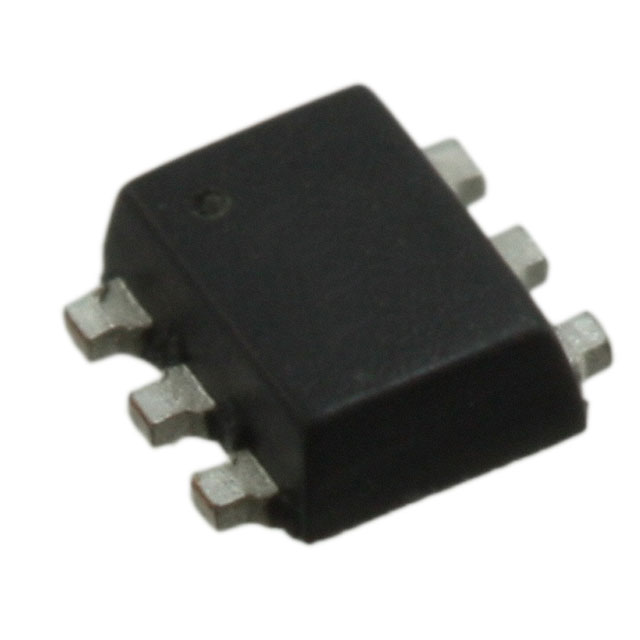

ESDA 系列 4 通道 25 V 22 pF 表面贴装 双向 Transil™ 阵列 - SOT-666

Description

The ESDAxxxP6 are monolithic arrays designed to protect up to 5 lines against ESD transients.

These devices are ideal where board space saving and reduced line capacitance are required.

Features

■ 4 / 5 Unidirectional ESDA6V1P6 and ESDA6V1-5P6 and Bidirectional ESDA14V2BP6 and Transil functions

■ Breakdown voltage:

   VBR = 6.1 V min., 14.2 V min. and 25 V min.

■ Low leakage current:

   < 500 nA ESDA6V1P6 / ESDA6V1-5P6

   < 1 µA ESDA14V2BP6 and ESDA25-4BP6

■ Very small PCB area < 2.6 mm2

Main applications

Where transient overvoltage protection in ESD sensitive equipment is required, such as:

 ■ Computers

 ■ Servers

 ■ Printers

 ■ Communication systems and cellular phones

 ■ Video equipment

These devices are particularly adapted to the protection of symmetrical signals.
