EKMG350ELL221MHB5D

UNITED CHEMI-CON  EKMG350ELL221MHB5D  铝电解电容； 220uF

220 µF 35 V 铝电解器 径向，Can - 105°C 时为 1000 小时

得捷:
CAP ALUM 220UF 20% 35V RADIAL

e络盟:
铝电解电容； 220uF

艾睿:

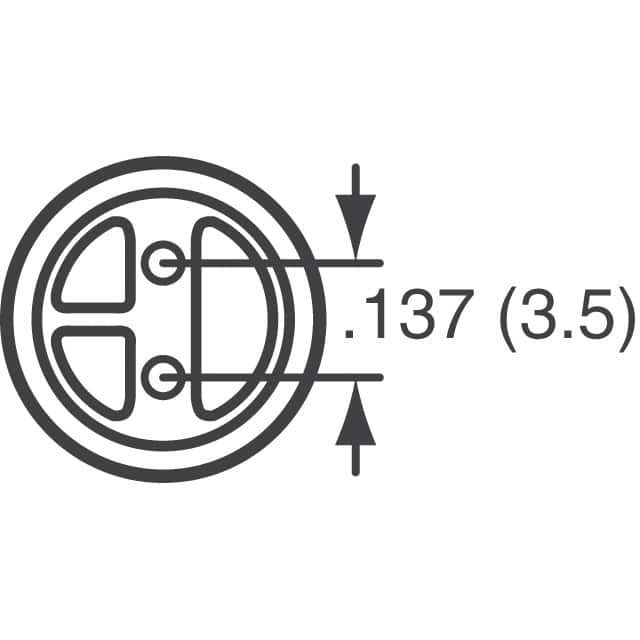

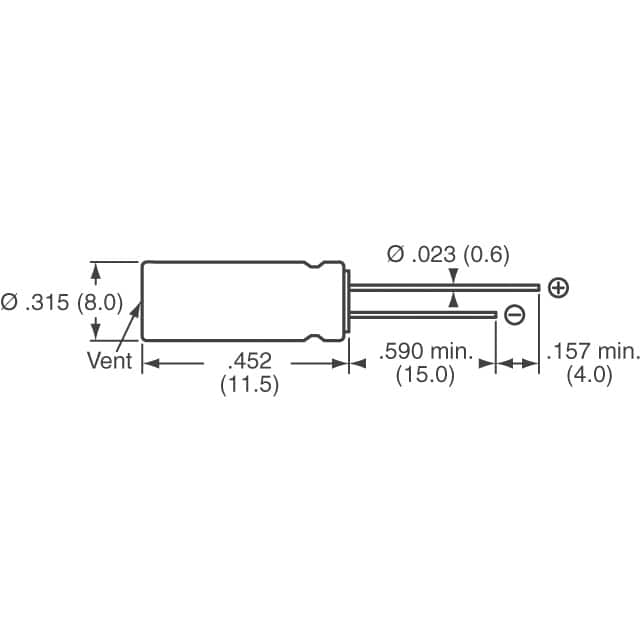

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic EKMG350ELL221MHB5D aluminum capacitor from United Chemi-con is the one for you! It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 11.5 mm tall with a diameter of 8 mm. It has a tolerance of 20%. Its leakage current is 231@1Min μA. The EKMG350ELL221MHB5D aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 220uF.

安富利:
NCCEKMG350ELL221MHB5D CAPACITOR

Chip1Stop:
Cap Aluminum 220uF 35V 20% 8 X 11.5mm Radial 3.5mm 270mA 1000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 220uF 35V 20% 8 X 11.5mm Radial 3.5mm 270mA 1000h 105C Bulk

Newark:
# UNITED CHEMI-CON  EKMG350ELL221MHB5D  Electrolytic Capacitor, Miniature, 220 µF, 35 V, KMG Series, ± 20%, Radial Leaded, 8 mm

MASTER:
Cap Aluminum Lytic 220uF 35V 20% 8 X 11.5mm Radial 3.5mm 270mA 1000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 220uF 35V 20% 8 X 11.5mm Radial 3.5mm 270mA 1000h 105°C Bulk
