EPM3032ATC44-4N

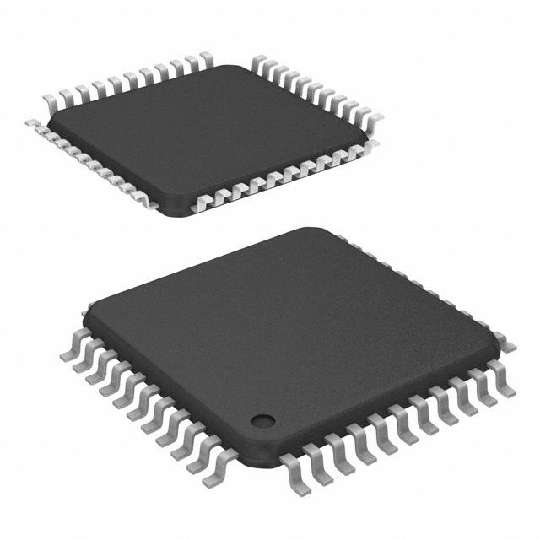

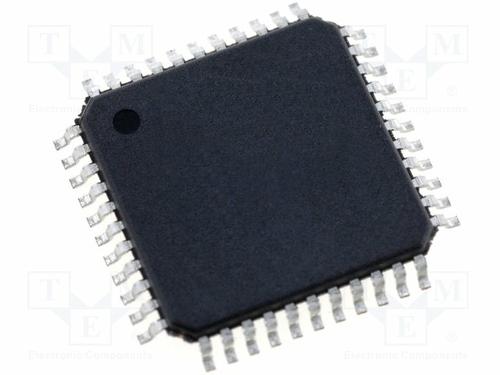

ALTERA  EPM3032ATC44-4N  芯片, CPLD, MAX 3000A, 32宏单元, TQFP44

The MAX 3000A series high-performance Complex Programmable Logic Device CPLD based on the MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based MAX 3000A devices operate with a 3.3V supply voltage and provide 600 to 10000 usable gates, ISP, pin-to-pin delays as fast as 4.5ns and counter speeds of up to 227.3MHz. MAX 3000A devices in the -4, -5, -6, -7 and -10 speed grades are compatible with the timing requirements of the PCI Special Interest Group PCI SIG PCI Local Bus Specification, Revision 2.2. The MAX 3000A architecture supports 100% transistor-to-transistor logic TTL emulation and high-density small-scale integration SSI, medium-scale integration MSI and large-scale integration LSI logic functions. The MAX 3000A architecture easily integrates multiple devices ranging from PALs, GALs and 22V10s to MACH and pLSI devices.

.

CMOS EEPROM-based programmable logic devices PLDs built on a MAX® architecture

.

Built-in boundary-scan test BST circuitry compliant with IEEE Std. 1149.1-1990

.

Enhanced ISP features

.

4.5ns Pin-to-pin logic delays with counter frequencies of up to 227.3MHz

.

Hot-socketing support

.

Programmable interconnect array PIA continuous routing structure for fast, predictable performance

.

Industrial temperature range

.

PCI Compatible

.

Bus-friendly architecture including programmable slew-rate control

.

Open-drain output option

.

Programmable macrocell flip-flops with individual clear, preset, clock and clock enable controls

.

Configurable expander product-term distribution, allowing up to 32 product terms per macrocell

.

Programmable security bit for protection of proprietary designs
