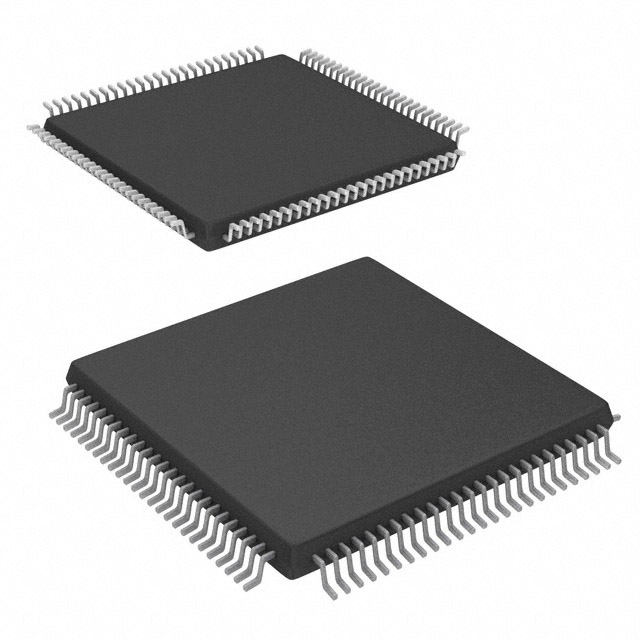

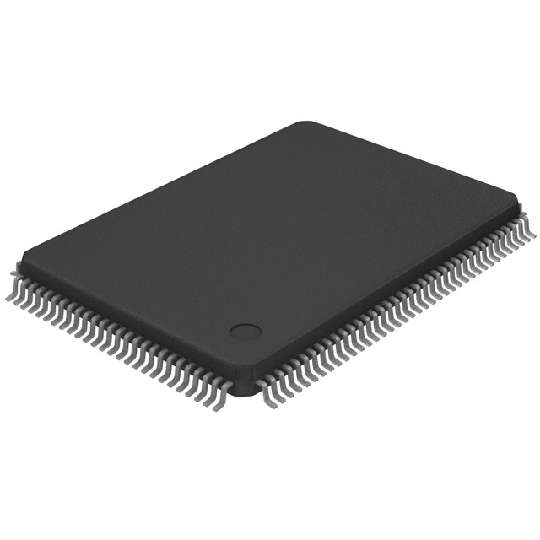

EPM3064ATI100-10N

ALTERA  EPM3064ATI100-10N  芯片, CPLD, MAX 3000A, 64宏单元, TQFP100

The is an EEPROM Complex Programmable Logic Device with 1250 usable gates and 64 macro cells. MAX 3000A CPLD is a high-performance, CMOS EEPROM-based programmable logic devices PLDs built on a MAX® architecture. Programmable interconnect array PIA continuous routing structure for fast, predictable performance. The MAX 3000A architecture supports 100% transistor-to-transistor logic TTL emulation and high-density small-scale integration SSI, medium-scale integration MSI and large-scale integration LSI logic functions.

.

Enhanced ISP algorithm for faster programming

.

Hot-socketing support

.

PCI compatible

.

Bus-friendly architecture including programmable slew-rate control

.

Open-drain output option

.

Programmable power-saving mode for a power reduction of over 50% in each macro cell

.

Programmable security bit for protection of proprietary designs
