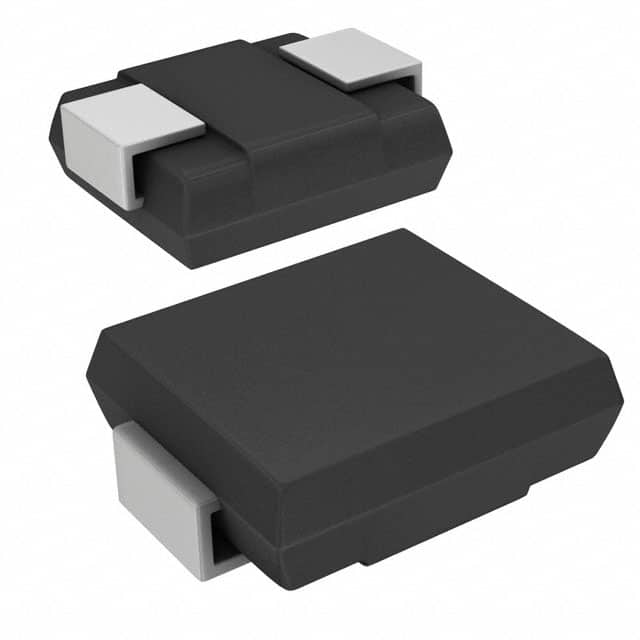

ERZ-VF2M151

PANASONIC ELECTRONIC COMPONENTS ERZ-VF2M151 TVS Varistor, 95V, 125V, ZNR VF Series, 250V, SMD, High Surge Current

150V 600A Varistor 1 Circuit Surface Mount, MLCV 2-SMD, J-Lead

立创商城:
ERZ-VF2M151

得捷:
VARISTOR 150V 600A 2SMD JLEAD

艾睿:
When different voltages are applied to this ERZ-VF2M151 MOV from Panasonic will change resistance. This device&s;s clamping current is 10 A and clamping voltage is 250 V. Its maximum surge current is 600 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum AC voltage rating is 95 VAC and the maximum DC voltage rating is 125 VDC. This varistor has a voltage of 150 V. This product is 8 mm long, 3.2 mm tall and 6 mm deep.

Verical:
Var 95VAC/125VDC 600A 150V SMD T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERZ-VF2M151  TVS Varistor, 95 V, 125 V, ZNR VF Series, 250 V, SMD, High Surge Current

MASTER:
Var 95VAC/125VDC 600A 150V SMD T/R

Electro Sonic:
Var 95VAC/125VDC 600A 150V SMD T/R
