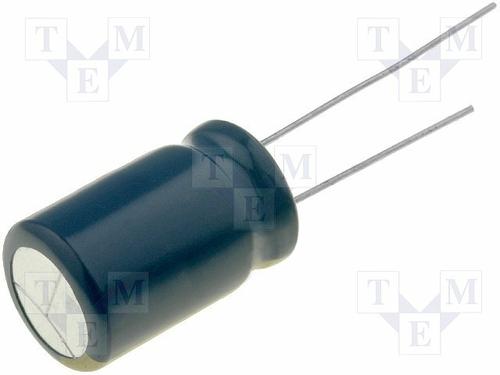

EEUFC1V121

PANASONIC ELECTRONIC COMPONENTS  EEUFC1V121  铝电解电容, AEC-Q200 FC系列, 120 µF, ± 20%, 35 V, 8 mm, 径向引线

FC 系列 120μF - 270μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

### 应用

Panasonic FC A 型电解电容器符合 AEC-Q200 规格，适用于汽车应用。 高可靠性还使这些电解质电容器特别适用于工业仪器应用。

欧时:
Panasonic 铝电解电容器 FC RADIAL 系列 35V dc 120μF 通孔 EEUFC1V121, ±20%容差, 117mΩ等值串联

e络盟:
铝电解电容, 120 µF, 35 V, FC系列, ± 20%, 径向引线, 8 mm

艾睿:
Choose this electrolytic EEU-FC1V121 aluminum capacitor from Panasonic for its relatively high ESR. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11.5 mm tall with a diameter of 8 mm. The EEU-FC1V121 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. Its leakage current is 42@2Min μA. It has a tolerance of 20%. Its capacitance value is 120uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Fc Radial Elec Cap 120uF 35V

Chip1Stop:
Cap Aluminum Lytic 120uF 35V 20% 8 X 11.5mm Radial 3.5mm 555mA 2000h 105ÂÂ℃ Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 120uF; 35VDC; ±20%

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1V121  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 120 - F, - 20%, 35 V, 8 mm, Radial Leaded
