EP1C12Q240C8N

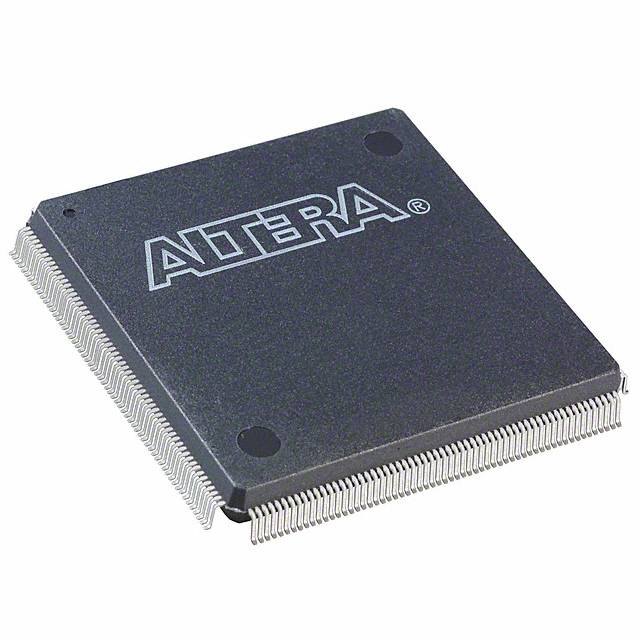

FPGA Cyclone Family 12060 Cells 275.03MHz 130nm Technology 1.5V 240Pin PQFP

The is a Cyclone® FPGA based on a 1.5V, 0.13µm features all-layer copper SRAM process with densities up to 12060 logic elements LEs and up to 239616-bit of RAM. With features like phaselocked loops PLLs for clocking and a dedicated double data rate DDR interface to meet DDR SDRAM and fast cycle RAM FCRAM memory requirements, Cyclone devices are a cost-effective solution for data-path applications. Cyclone devices support various I/O standards, including LVDS at data rates up to 640Mbps and 66- and 33-MHz, 64- and 32-bit peripheral component interconnect PCI, for interfacing with and supporting ASSP and ASIC devices. also offers new low-cost serial configuration devices to configure Cyclone devices. It contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between LABs and embedded memory blocks.

.

Supports configuration through low-cost serial configuration device

.

Supports for LVTTL, LVCMOS, SSTL-2 and SSTL-3 I/O standards

.

Supports for 66- and 33-MHz, 64- and 32-bit PCI standard

.

High-speed 640Mbps LVDS I/O support

.

Low-speed 311Mbps LVDS I/O support

.

311Mbps RSDS I/O support

.

Up to two PLLs per device provide clock multiplication and phase shifting

.

Up to eight global clock lines with six clock resources available per logic array block LAB row

.

Supports for external memory, including DDR SDRAM, FCRAM and single data rate SDRAM

.

Supports for multiple intellectual property IP cores
