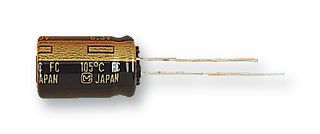

PANASONIC ELECTRONIC COMPONENTS EEU-FC1C272 铝电解电容, AEC-Q200 FC系列, 2700 µF, ± 20%, 16 V, 16 mm, 径向引线
The FC series capacitors are automotive grade type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 2.2µF to 15000µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- .
- High reliability
- .
- Automotive grade AEC-Q200 compliant
- .
- Rated voltage range of 6.3VDC to 100VDC
- .
- Tolerance of ±20%
- .
- Endurance of 1000h to 5000h at 105°C
- .
- Operating temperature range -55°C to 105°C
额定电压DC 16 V
电容 2700 µF
容差 ±20 %
纹波电流 2205 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
长度 20 mm
高度 20 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
寿命（小时） 5000h @105℃
制造应用 车用, Automotive, Consumer Electronics, 便携式器材, Power Management, 汽车级, 电源管理, 消费电子产品, 工业, Industrial, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532220040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EEU-FC1C272 Panasonic 松下 | 当前型号 | 当前型号 |
EEU-FC1C272B 松下 | 类似代替 | EEU-FC1C272和EEU-FC1C272B的区别 |
ELXY160ELL272ML25S UAUnited Automation | 类似代替 | EEU-FC1C272和ELXY160ELL272ML25S的区别 |
EKZE160ELL272ML20S 贵弥功 | 功能相似 | EEU-FC1C272和EKZE160ELL272ML20S的区别 |
