EEUFM1H221

PANASONIC ELECTRONIC COMPONENTS  EEUFM1H221  铝电解电容, FM系列, 220 µF, ± 20%, 50 V, 10 mm, 径向引线

FM 系列 25 V 至 50 V

FM 系列 A 型电解器可提供低阻抗（40% 到 70%，低于 Panasonic FC 系列）可高耐受性。 +105°C 时，耐受性为 2000 小时至 7000 小时（取决于箱尺寸）。

高可靠性

长寿命

高波纹电流

欧时:
Panasonic 铝电解电容器 FM RADIAL 系列 50V dc 220μF 通孔 EEUFM1H221, ±20%容差, 最高+105°C

艾睿:

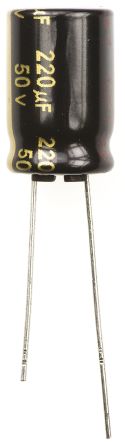

This electrolytic EEU-FM1H221 aluminum capacitor from Panasonic has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 110@2Min μA. The EEU-FM1H221 aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 220uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 16 mm tall with a diameter of 10 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 220uF; Tol 20%; Vol-Rtg 50 VDC; Radial

安富利:
Cap Aluminum 220uF 50V 20% 10 X 16mm Radial 5mm 1650mA 4000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum 220uF 50VDC 20% 10 X 16mm RDL 5mm 1650mA 4000 hr Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 220uF; 50VDC; ±20%

Verical:
Cap Aluminum 220uF 50V 20% 10 X 16mm Radial 5mm 1650mA 4000 hr Bulk

儒卓力:
**FM 220uF 50V 20% 10x16/5,0 **
