EEU-EB2D101

PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D101  铝制电解电容, 100UF

100 µF 200 V 铝电解器 径向，Can - 105°C 时为 5000 小时

贸泽:
Aluminum Electrolytic Capacitors - Leaded 100uF 200volts AEC-Q200

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D101  铝制电解电容, 100UF

艾睿:

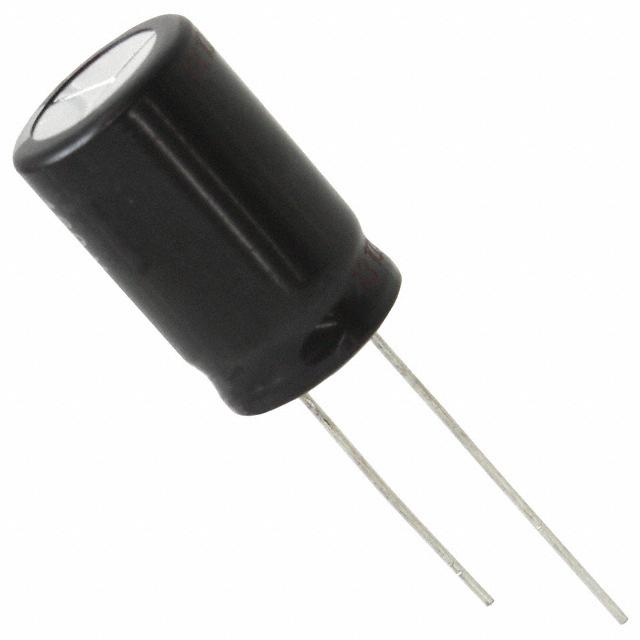

This electrolytic EEU-EB2D101 aluminum capacitor from Panasonic combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. The EEU-EB2D101 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 200@2Min μA. Its capacitance value is 100uF. This product is 25 mm tall with a diameter of 16 mm.

Verical:
Cap Aluminum Lytic 100uF 200V 20% 16 X 25mm Radial 7.5mm 1060mA 5000h 105C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D101  Electrolytic Capacitor, 100 µF, 200 V, EB Series, ± 20%, Radial Leaded, 16 mm

MASTER:
Cap Aluminum Lytic 100uF 200V 20% 16 X 25mm Radial 7.5mm 1060mA 5000h 105°C Bulk

Online Components:
Cap Aluminum Lytic 100uF 200V 20% 16 X 25mm Radial 7.5mm 1060mA 5000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 100uF 200V 20% 16 X 25mm Radial 7.5mm 1060mA 5000h 105°C Bulk
